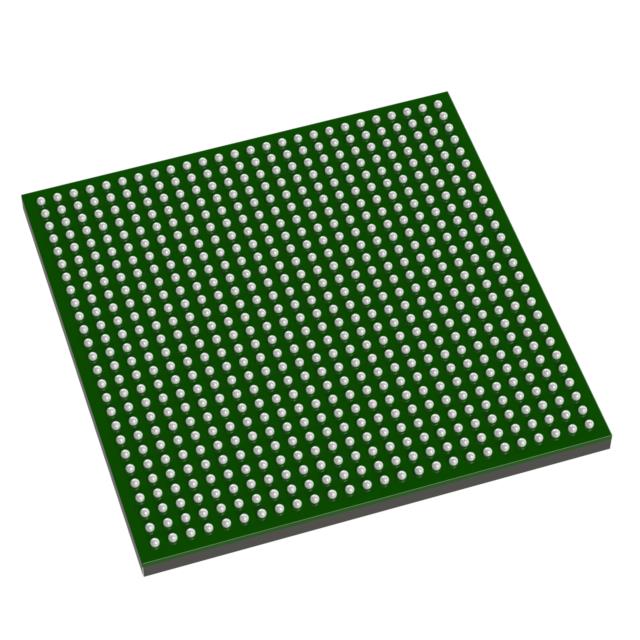

XC7Z030-1FFG676I

Active

AMD

IC SOC CORTEX-A9 667MHZ 676FCBGA

Deep-Dive with AI

Search across all available documentation for this part.

XC7Z030-1FFG676I

Active

AMD

IC SOC CORTEX-A9 667MHZ 676FCBGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC7Z030-1FFG676I

Architecture	MCU, FPGA
Connectivity	UART/USART, EBI/EMI, USB OTG, MMC/SD/SDIO, I2C, SPI, CANbus, Ethernet
Core Processor	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
Number of I/O	130 I/O
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Peripherals	DMA
Primary Attributes	Kintex™-7 FPGA, 125K
RAM Size	256 KB
Speed	667 MHz
Supplier Device Package	676-FCBGA (27x27)

XC7Z030 Series

Part	Package / Case	Connectivity	Core Processor	Speed	RAM Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Supplier Device Package	Architecture	Primary Attributes
AMD XC7Z030-2SBG485I	484-FBGA FCBGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	484-FCBGA (19x19)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-2FF676I		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-1FBG676I		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	667 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-3FBG484E	484-BBGA FCBGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	1 GHz	256 KB	130 I/O	100 °C	0 °C	DMA		MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-L2FFG676I		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-2FB484I	484-BBGA FCBGA	CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	-40 C	DMA		MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-2FFG676I		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-3FBG676E		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	1 GHz	256 KB	130 I/O	100 °C	0 °C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-2FFG676E		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	800 MHz	256 KB	130 I/O	100 °C	0 °C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA
AMD XC7Z030-1FFG676I		CANbus EBI/EMI Ethernet I2C MMC/SD/SDIO SPI UART/USART USB OTG	Dual ARM® Cortex®-A9 MPCore™ with CoreSight™	667 MHz	256 KB	130 I/O	100 °C	-40 C	DMA	676-FCBGA (27x27)	MCU FPGA	125K Kintex™-7 FPGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 469.30

Description

General part information

XC7Z030 Series

Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Kintex™-7 FPGA, 125K Logic Cells 667MHz 676-FCBGA (27x27)

Documents

Technical documentation and resources

No documents available
