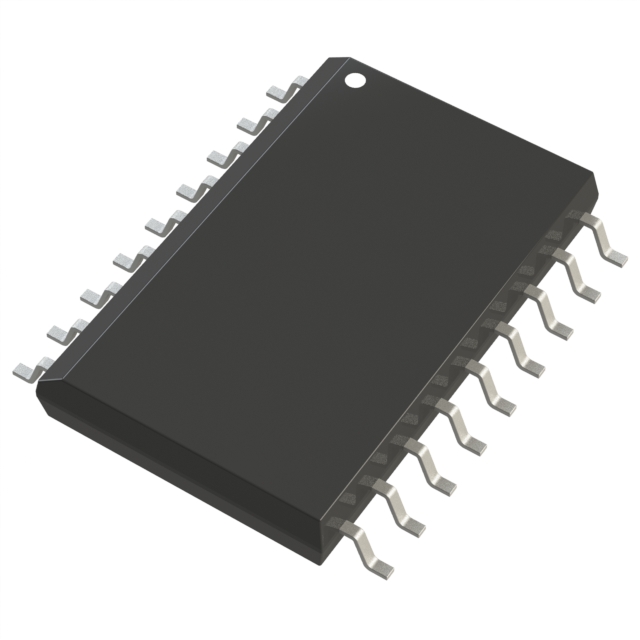

DSPIC33FJ06GS101-I/SO

Obsolete

Microchip Technology

IC MCU 16BIT 6KB FLASH 18SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsdsPIC30F2010 Datasheet

DSPIC33FJ06GS101-I/SO

Obsolete

Microchip Technology

IC MCU 16BIT 6KB FLASH 18SOIC

Deep-Dive with AI

DocumentsdsPIC30F2010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DSPIC33FJ06GS101-I/SO

Connectivity	LINbus, I2C, IrDA, SPI, UART/USART
Core Processor	dsPIC
Core Size	16-Bit
Data Converters [custom]	10 b
Data Converters [custom]	6
Mounting Type	Surface Mount
Number of I/O	13
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	18-SOIC
Package / Case [y]	0.295 in
Package / Case [y]	7.5 mm
Program Memory Size	6 KB
Program Memory Type	FLASH
RAM Size	256 x 8
Speed	40 MIPs
Supplier Device Package	18-SOIC

dsPIC33FJ06GS101A Series

High-Speed PWM, ADC and Comparators

Part	Data Converters [custom]	Data Converters [custom]	Grade	Connectivity	RAM Size	Oscillator Type	Package / Case [y]	Package / Case [y]	Package / Case	Supplier Device Package	Program Memory Size	Qualification	Mounting Type	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Speed	Program Memory Type	Core Size	Data Converters	Package / Case [x]	Package / Case [x]
Microchip Technology DSPIC33FJ06GS101-E/SO	10 b	6	Automotive	I2C IrDA LINbus SPI UART/USART	256 x 8	Internal	0.295 in	7.5 mm	18-SOIC	18-SOIC	6 KB	AEC-Q100	Surface Mount	dsPIC	-40 °C	125 °C	13	40 MIPs	FLASH	16-Bit
Microchip Technology DSPIC33FJ06GS101T-E/SOD21			Automotive	I2C IrDA LINbus SPI UART/USART	256 x 8	External Internal	0.295 in	7.5 mm	18-SOIC	18-SOIC	6 KB	AEC-Q100	Surface Mount	dsPIC	-40 °C	125 °C	13	40 MIPs	FLASH	16-Bit	A/D 6x10b SAR
Microchip Technology DSPIC33FJ06GS101-I/P	10 b	6		I2C IrDA LINbus SPI UART/USART	256 x 8	Internal			18-DIP	18-PDIP	6 KB		Through Hole	dsPIC	-40 °C	85 °C	13	40 MIPs	FLASH	16-Bit		0.3 in	7.62 mm
Microchip Technology DSPIC33FJ06GS101A-I/SS	10 b	6		I2C IrDA LINbus SPI UART/USART	256 x 8	Internal			20-SSOP	20-SSOP	6 KB		Surface Mount	dsPIC	-40 °C	85 °C	13	40 MIPs	FLASH	16-Bit
Microchip Technology DSPIC33FJ06GS101-I/SO	10 b	6		I2C IrDA LINbus SPI UART/USART	256 x 8	Internal	0.295 in	7.5 mm	18-SOIC	18-SOIC	6 KB		Surface Mount	dsPIC	-40 °C	85 °C	13	40 MIPs	FLASH	16-Bit
Microchip Technology DSPIC33FJ06GS101-E/P	10 b	6	Automotive	I2C IrDA LINbus SPI UART/USART	256 x 8	Internal			18-DIP	18-PDIP	6 KB	AEC-Q100	Through Hole	dsPIC	-40 °C	125 °C	13	40 MIPs	FLASH	16-Bit		0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

dsPIC33FJ06GS101A Series

These devices offer features supporting common, multi-loop digital switch-mode power supplies (SMPS) and other digital power-conversion applications such as: AC to DC Converters, DC to DC Converters, Power Factor Correction (PFC), Uninterruptible power supply (UPS), Inverters, Embedded Power-Supply Controllers, Circuit Breakers, Arc Fault Detection, Digital Lighting

Documents

Technical documentation and resources

dsPIC30F2010

Datasheet
