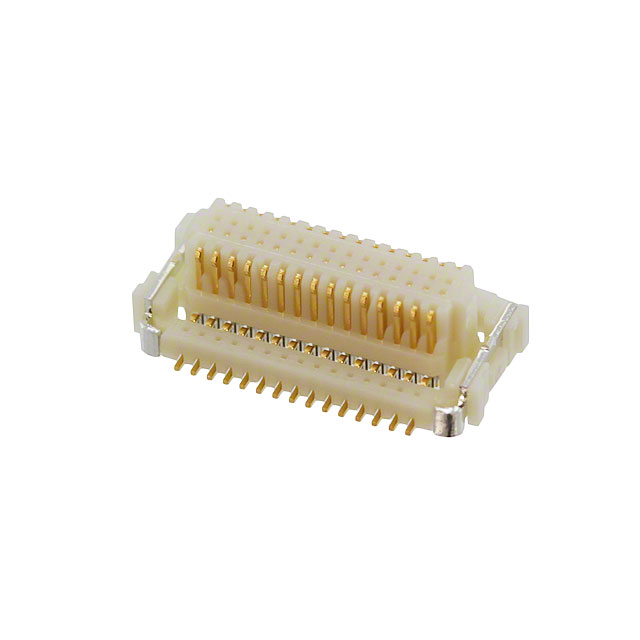

30RF-JMCS-G-1-TF(N)(LF)(SN)

Obsolete

JST Sales America Inc.

CONN RCPT 30POS SMD GOLD

Search across all available documentation for this part.

Obsolete

JST Sales America Inc.

CONN RCPT 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	30RF-JMCS-G-1-TF(N)(LF)(SN)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Features	Contact Finish	Connector Type	Mounting Type	Number of Rows
JST Sales America Inc. 30RF-JMCS-G-1B-TF(N)(LF)(SN)	0.5 mm	0.02 in	0.13 in	3.3 mm	30	Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	Surface Mount	2
JST Sales America Inc. 30RF-JMCS-G-1-TF(N)(LF)(SN)	0.5 mm	0.02 in	0.13 in	3.3 mm	30	Solder Retention	Gold	Center Strip Contacts Receptacle	Surface Mount	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
