SML-LX0603USBW-TR

Active

Lumex Opto/Components Inc.

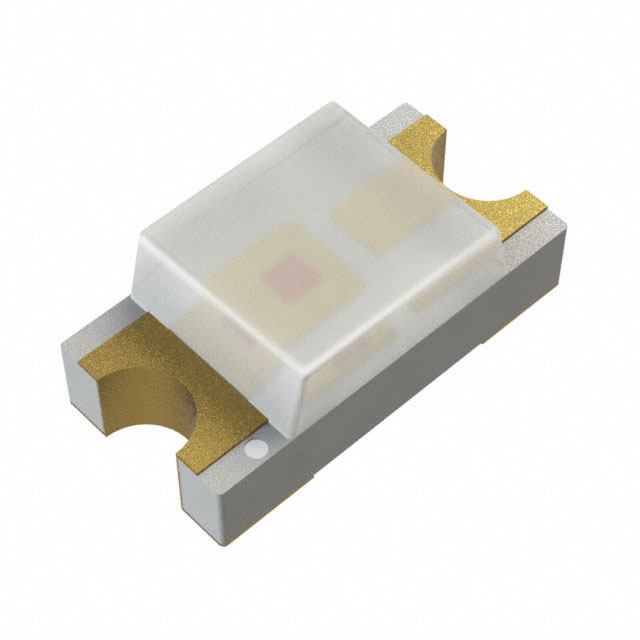

LED BLUE DIFFUSED 0603 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX0603USBW-TR

Active

Lumex Opto/Components Inc.

LED BLUE DIFFUSED 0603 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX0603USBW-TR

Color	Blue
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	0.85 mm
Lens Color	White
Lens Size [x]	1 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	112.5 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	3.3 V

SML-LX0603 Series

Part	Package / Case	Lens Transparency	Current - Test	Mounting Type	Viewing Angle	Height (Max) [Max]	Lens Style	Lens Color	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Configuration	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Color	Height (Max) [Max] [z]
Lumex Opto/Components Inc. SML-LX0603SOW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	140 °	0.6 mm	Rectangle with Flat Top	White	610 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2 V	60 mcd
Lumex Opto/Components Inc. SML-LX0603YW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	160 °	0.6 mm	Rectangle with Flat Top	White	585 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2.1 V	14 mcd	Yellow
Lumex Opto/Components Inc. SML-LX0603GW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	160 °	0.6 mm	Rectangle with Flat Top	White	565 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2.2 V	18 mcd	Green
Lumex Opto/Components Inc. SML-LX0603SUGW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	140 °	0.6 mm	Rectangle with Flat Top	White		1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2 V	71.5 mcd	Green
Lumex Opto/Components Inc. SML-LX0603SRW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	120 °	0.6 mm	Rectangle with Flat Top	White	660 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	1.7 V	15 mcd	Red
Lumex Opto/Components Inc. SML-LX0603UWD-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	140 °		Rectangle with Flat Top	Yellow		1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	3.5 V	160 mcd	White	0.8 mm
Lumex Opto/Components Inc. SML-LX0603IW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	160 °	0.6 mm	Rectangle with Flat Top	White	635 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2 V	14 mcd	Red
Lumex Opto/Components Inc. SML-LX0603SIW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	128 °	0.6 mm	Rectangle with Flat Top	White	632 nm	1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	2 V	71.5 mcd	Red
Lumex Opto/Components Inc. SML-LX0603SGW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	160 °	0.73 mm	Rectangle with Flat Top	White	565 nm	1.6 mm	0.8 mm		1 mm	0.8 mm	2.2 V	20 mcd	Green
Lumex Opto/Components Inc. SML-LX0603USBW-TR	0603 (1608 Metric)	Diffused	20 mA	Surface Mount	140 °		Rectangle with Flat Top	White		1.6 mm	0.8 mm	Standard	1 mm	0.8 mm	3.3 V	112.5 mcd	Blue	0.85 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.07
		10	$ 1.38
		100	$ 1.06
		500	$ 0.96
		1000	$ 0.82
		2000	$ 0.78
	Digi-Reel®	1	$ 2.07
		10	$ 1.38
		100	$ 1.06
		500	$ 0.96
		1000	$ 0.82
		2000	$ 0.78
	Tape & Reel (TR)	4000	$ 0.78
		8000	$ 0.76
		12000	$ 0.75

Description

General part information

SML-LX0603 Series

Blue LED Indication - Discrete 3.3V 0603 (1608 Metric)
