PCS.07.A

Active

TAOGLAS

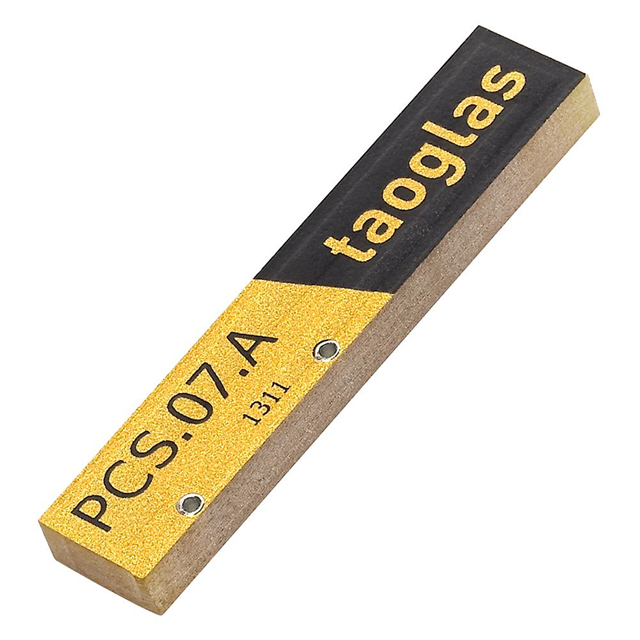

RF ANTENNA, 1.92 TO 2.17GHZ, CELLULAR / 3G, 2.57DBI, 50 OHM, LINEAR

Search across all available documentation for this part.

Active

TAOGLAS

RF ANTENNA, 1.92 TO 2.17GHZ, CELLULAR / 3G, 2.57DBI, 50 OHM, LINEAR

Technical Specifications

Parameters and characteristics for this part

Specification	PCS.07.A

Antenna Type	Chip
Applications	HSDPA, CDMA, UMTS, GPRS, PCS, DCS, WCDMA, EDGE, GSM
Frequency (Center/Band)	1.8 GHz, 900 MHz, 850 MHz, 1.9 GHz, 2.1 GHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 2.17 GHz
Frequency Range [Min]	1.71 GHz, 824 MHz
Gain	2.57 dBi, 1.77 dBi, 2.83 dBi, -1.96 dBi, 2.9 dBi
Height (Max)	3 mm
Height (Max) [Max] [z]	0.118 in
Mounting Type	Surface Mount
Number of Bands [custom]	5
Return Loss	-3 dB, -5 dB, -6 dB, -4 dB, -7 dB
RF Family/Standard	Cellular
Termination	Solder

Part	Frequency Range [Min]	Frequency Range [Max]	Height (Max) [Max] [z]	Height (Max)	Number of Bands [custom]	Mounting Type	Antenna Type	Termination	Frequency (Center/Band)	Gain	Return Loss	Frequency Group	Applications	RF Family/Standard
TAOGLAS PCS.07.A	1.71 GHz 824 MHz	2.17 GHz 960 MHz	0.118 in	3 mm	5	Surface Mount	Chip	Solder	1.8 GHz 1.9 GHz 2.1 GHz 850 MHz 900 MHz	-1.96 dBi 1.77 dBi 2.57 dBi 2.83 dBi 2.9 dBi	-7 dB -6 dB -5 dB -4 dB -3 dB	Wide Band	CDMA DCS EDGE GPRS GSM HSDPA PCS UMTS WCDMA	Cellular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA Chip Solder Surface Mount
