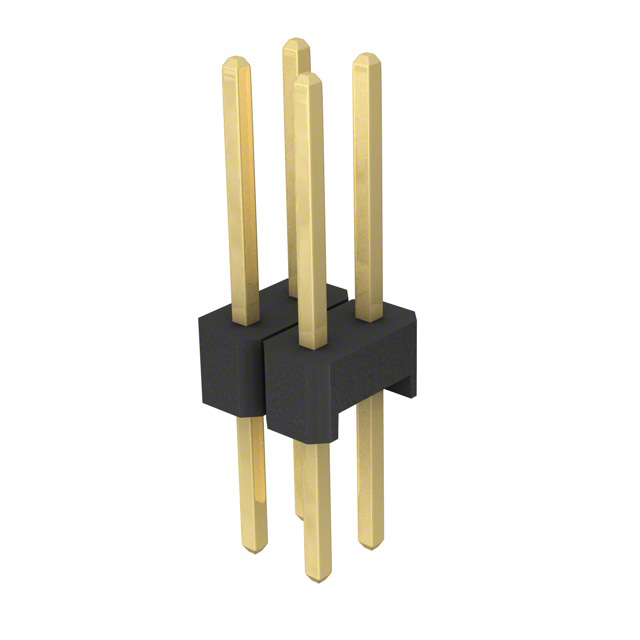

PRPC002DFBN-RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

PRPC002DFBN-RC

Active

Sullins Connector Solutions

BOARD CONNECTOR, 4 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC002DFBN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.17 mm
Overall Contact Length	0.637 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC002 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Positions	Number of Positions Loaded	Number of Rows	Contact Finish Thickness - Post	Contact Type	Mounting Type	Material Flammability Rating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Style	Insulation Material	Current Rating (Amps)	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating	Contact Material	Connector Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Sullins Connector Solutions PRPC002SBAN-M71RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	2	All	1	Flash	Male Pin	Through Hole Right Angle	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header
Sullins Connector Solutions PRPC002DAAN-RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	4	All	2	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header	0.448 in	11.39 mm	2.54 mm	0.1 in
Sullins Connector Solutions PRPC002SFAN-RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	2	All	1	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.318 "		Brass	Breakaway Header		0.537 "			13.63 mm	8.08 mm
Sullins Connector Solutions PRPC002SBCN-M71RC	0.32 in	8.13 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	2	All	1	Flash	Male Pin	Through Hole Right Angle	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header
Sullins Connector Solutions PRPC002SADN-RC	0.42 in	10.67 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	2	All	1	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header	0.748 in	19.01 mm
Sullins Connector Solutions PRPC002DFBN-RC			Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	4	All	2	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.318 "		Brass	Breakaway Header	0.637 in	16.17 mm	2.54 mm	0.1 in		8.08 mm	0.22 in	5.58 mm
Sullins Connector Solutions PRPC002DABN-RC			Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	4	All	2	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header	0.558 in	14.18 mm	2.54 mm	0.1 in			0.23 in	5.84 mm
Sullins Connector Solutions PRPC002DBAN-M71RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	4	All	2	Flash	Male Pin	Through Hole Right Angle	UL94 V-0	Flash			Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.23 in	5.84 mm	Brass	Breakaway Header			2.54 mm	0.1 in					0.197 in	5 mm
Sullins Connector Solutions PRPC002SGAN-M71RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	2	All	1	Flash	Male Pin	Through Hole Right Angle	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.318 "		Brass	Breakaway Header						8.08 mm
Sullins Connector Solutions PRPC002DFAN-RC	0.12 in	3.05 mm	Push-Pull	Gold	Solder	-40 °C	105 ░C	Unshrouded	Black	0.1 in	2.54 mm	Square	4	All	2	Flash	Male Pin	Through Hole	UL94 V-0	Flash	0.098 in	2.5 mm	Board to Board Cable	Polybutylene Terephthalate (PBT)	3 A	Gold	0.318 "		Brass	Breakaway Header		0.537 "	2.54 mm	0.1 in	13.63 mm	8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.49
		10	$ 0.38
		100	$ 0.29
		500	$ 0.24
		1000	$ 0.22
		5000	$ 0.19
		10000	$ 0.18

Description

General part information

PRPC002 Series

Connector Header Through Hole 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
