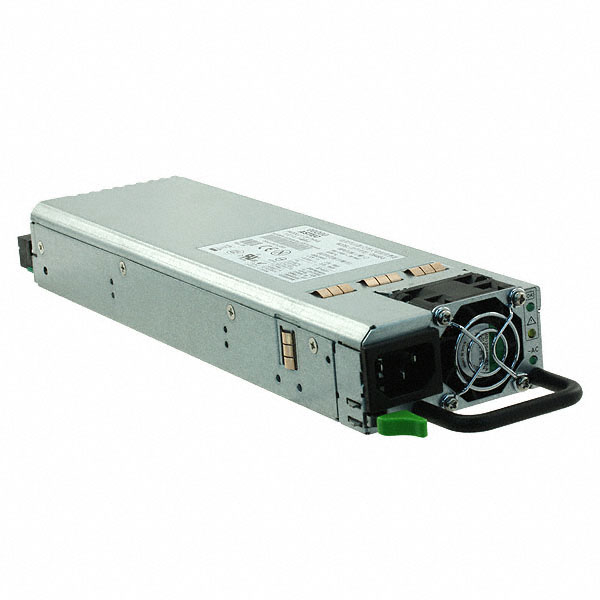

DS450-3

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 37A 550W 30-PIN

Deep-Dive with AI

Search across all available documentation for this part.

DS450-3

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 12V 37A 550W 30-PIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS450-3

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	37 A
Efficiency	84 %
Features	I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Power (Watts)	450 W
Size / Dimension [x]	12.03 "
Size / Dimension [x]	305.6 mm
Size / Dimension [y]	3.07 in
Size / Dimension [y]	78 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

DS450 Series

Part	For Use With/Related Products	Accessory Type	Type	Mounting Type	Number of Outputs	Efficiency	Current - Output 1	Voltage - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Approval Agency	Voltage - Output 2	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]
ARTESYN / Advanced Energy DS450/550 BLANK	DS450 DS550 Power Supplies	Blank Panel
ARTESYN / Advanced Energy DS450-3-002			Front End	Rack Mount	1	84 %	37 A	12 V	ITE (Commercial)	90 VAC	264 VAC	450 W	-10 °C	50 °C	78 mm	3.07 in	12.03 "	38.6 mm	305.6 mm	1.52 in	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	CB CE
ARTESYN / Advanced Energy DS450-3			Front End	Rack Mount	1	84 %	37 A	12 V	ITE (Commercial)	90 VAC	264 VAC	450 W	-10 °C	50 °C	78 mm	3.07 in	12.03 "	40 mm	305.6 mm	1.57 "	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	CB CE
ARTESYN / Advanced Energy DS450HE-3			Front End	Rack Mount	1	89 %	37 A	12 V	ITE (Commercial)	90 VAC	264 VAC	450 W	-10 °C	50 °C	78 mm	3.07 in	12.03 "	38.6 mm	305.6 mm	1.52 in	Adjustable Output Hot Swappable I2C Interface Load Sharing Remote On/Off Standby Output Universal Input	CB CE
ARTESYN / Advanced Energy DS450DC-3-002			Front End	Rack Mount	2			12 V	ITE (Commercial)			450 W	-10 °C	50 °C	78 mm	3.07 in	12.03 "	40 mm	305.6 mm	1.57 "		CB CCC CE cUL EN NEMKO UL	3.3 V	3 A 37 A	75 V	36 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 36.45
Digikey	Bulk	45	$ 179.22

Description

General part information

DS450 Series

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
