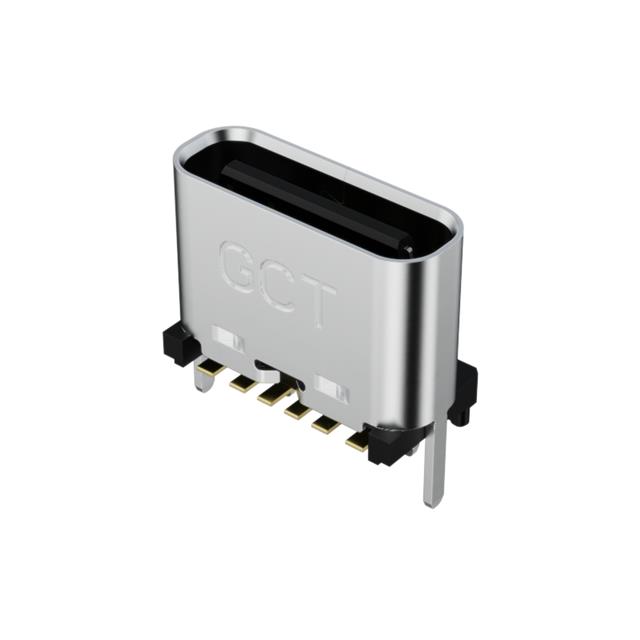

USB4140-GF-0070-C
ActiveGCT
USB C REC GF VERT 6P SMT 0.7MM T
Deep-Dive with AI
Search across all available documentation for this part.
USB4140-GF-0070-C
ActiveGCT
USB C REC GF VERT 6P SMT 0.7MM T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4140-GF-0070-C |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 3 A |
| Features | No Data, Solder Retention Tab, Power Only |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 6, 18 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 0.84 | ||
| 10 | $ 0.64 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.53 | |||
| 100 | $ 0.49 | |||
| Tape & Reel (TR) | 400 | $ 0.42 | ||
| 800 | $ 0.39 | |||
| 1200 | $ 0.38 | |||
| 2000 | $ 0.36 | |||
| 2800 | $ 0.34 | |||
| 4000 | $ 0.33 | |||
| 10000 | $ 0.30 | |||
| 20000 | $ 0.28 | |||
Description
General part information
USB4140 Series
USB-C (USB TYPE-C) Receptacle Connector 24 (6+18 Dummy) Position Surface Mount, Through Hole
