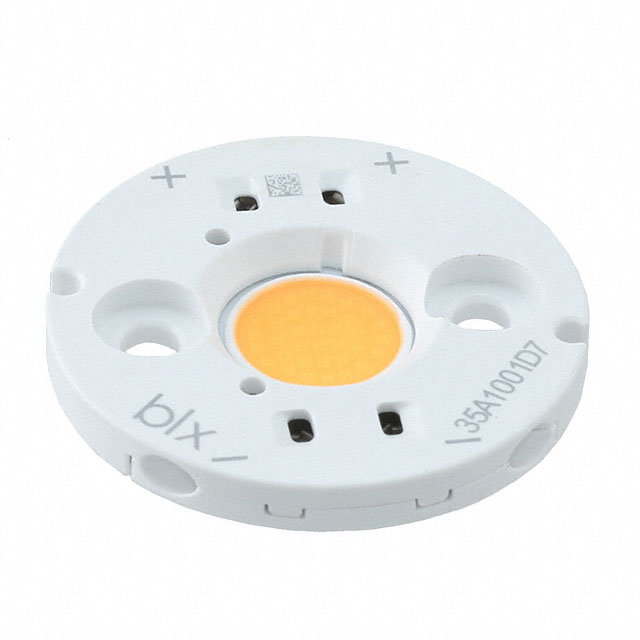

BXRC-35A1001-D-73-SE

Active

BRIDGELUX

LED COB DECOR WM WH ROUND 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-35A1001-D-73-SE

Active

BRIDGELUX

LED COB DECOR WM WH ROUND 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-35A1001-D-73-SE

CCT (K)	3500 K
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	93
Current - Max [Max]	700 mA
Current - Test	350 mA
Height [z]	3.6 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.9 mm
Lumens/Watt @ Current - Test	112 lm/W
Luminous Flux @ Current/Temperature	996 lm
Size / Dimension [diameter]	30.8 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	25.3 V

BXRC-35 Series

...

Part	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Configuration	Lumens/Watt @ Current - Test	Current - Max [Max]	Color	Lens Type	Viewing Angle	Height [z]	Features	CCT (K)	Luminous Flux @ Current/Temperature	Type	Current - Test	Temperature - Test
BRIDGELUX BXRC-35G1000-D-73	9.9 mm	20 mm	90	26 V	Starboard	133 lm/W	700 mA	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	1209 lm	Chip On Board (COB)	350 mA
BRIDGELUX BXRC-35E4000-D-73-SE	18.4 mm	36.2 mm	80	28.3 V	Round	145 lm/W	2.1 A	Warm White	Flat	120 °	3.6 mm		3500 K	4303 lm	Chip On Board (COB)	1.05 A	85 °C
BRIDGELUX BXRC-35E4000-F-03	18.4 mm	36.2 mm	80	29.5 V	Round	127 lm/W	2.1 A	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	3920 lm	Chip On Board (COB)	1.05 A
BRIDGELUX BXRC-35A1001-D-73-SE	9.9 mm	30.8 mm	93	25.3 V	Round	112 lm/W	700 mA	Warm White	Flat	120 °	3.6 mm		3500 K	996 lm	Chip On Board (COB)	350 mA	85 °C
BRIDGELUX BXRC-35E10K0-L-23	29.2 mm	49.2 mm	80	38 V	Round	143 lm/W	4.2 A	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	11399 lm	Chip On Board (COB)	2.1 A
BRIDGELUX BXRC-35G4000-B-73	18.4 mm	36.2 mm	90	34.1 V	Round	122 lm/W	1.8 A	Warm White	Flat		1.9 mm	With Connector	3500 K	3744 lm	Chip On Board (COB)	900 mA	85 °C
BRIDGELUX BXRC-35E4000-F-23	18.4 mm	36.2 mm	80	29.5 V	Round	138 lm/W	2.1 A	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	4289 lm	Chip On Board (COB)	1.05 A
BRIDGELUX BXRC-35G10K0-C-73	29.2 mm	49.2 mm	90	69.4 V	Round	137 lm/W	3.42 A	Warm White	Flat	120 °	1.9 mm		3500 K	16257 lm	Chip On Board (COB)	1.71 A
BRIDGELUX BXRC-35E1000-C-72	9.9 mm	20 mm	80	34.8 V	Starboard	160 lm/W	720 mA	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	2000 lm	Chip On Board (COB)	360 mA
BRIDGELUX BXRC-35A10K1-C-73	29.2 mm	49.2 mm	93	68.4 V	Round	118 lm/W	3.42 A	Warm White	Flat	120 °	1.9 mm	With Connector	3500 K	13771 lm	Chip On Board (COB)	1.71 A	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 2.62

Description

General part information

BXRC-35 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Class A Vero® SE 10 White, Warm Round
