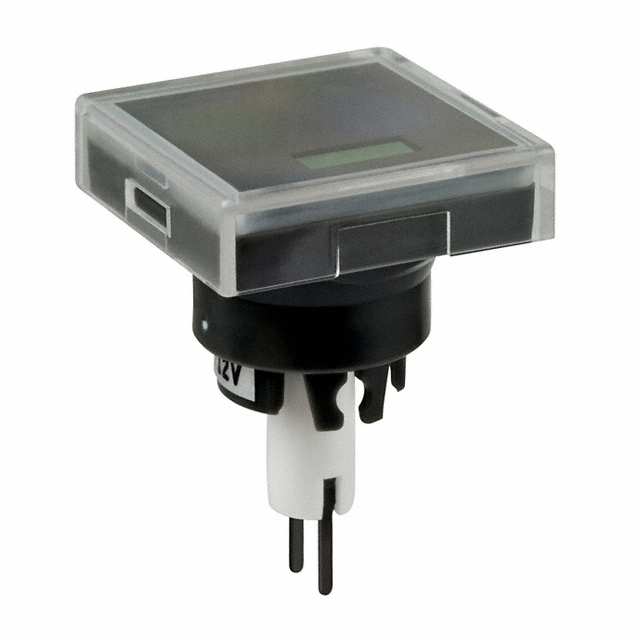

AT3010F02JA

NKK Switches

CAP PUSHBUTTON SQUARE CLEAR/BLK

Search across all available documentation for this part.

NKK Switches

CAP PUSHBUTTON SQUARE CLEAR/BLK

Technical Specifications

Parameters and characteristics for this part

Specification	AT3010F02JA

Color	Clear, Black
Features	Built-In Green LED
For Use With/Related Products	YB Series
Illumination	Illumination Opening
Mounting Type	Snap Fit
Shape	Square
Size [x]	15 mm
Size [y]	15 mm
Size [z]	4 mm
Switch Type	Pushbutton

Part	For Use With/Related Products	Features	Mounting Type	Color	Shape	Illumination	Switch Type	Size [z]	Size [y]	Size [x]
NKK Switches AT3010CF24JA	YB Series	Built-In Red/Green LED	Snap Fit	Black Clear	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010F02JA	YB Series	Built-In Green LED	Snap Fit	Black Clear	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010D05JE	YB Series	Built-In Amber LED	Snap Fit	Clear Yellow	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010F12JB	YB Series	Built-In Green LED	Snap Fit	Clear White	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010C05JB	YB Series	Built-In Red LED	Snap Fit	Clear White	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010CF02JC	YB Series	Built-In Red/Green LED	Snap Fit	Clear Red	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010D02JE	YB Series	Built-In Amber LED	Snap Fit	Clear Yellow	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010CF05JB	YB Series	Built-In Red/Green LED	Snap Fit	Clear White	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010C12JA	YB Series	Built-In Red LED	Snap Fit	Black Clear	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm
NKK Switches AT3010D24JB	YB Series	Built-In Amber LED	Snap Fit	Clear White	Square	Illumination Opening	Pushbutton	4 mm	15 mm	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Square Pushbutton Switch Cap Clear, Black Snap Fit
