121-83360
ActiveHELLERMANNTYTON

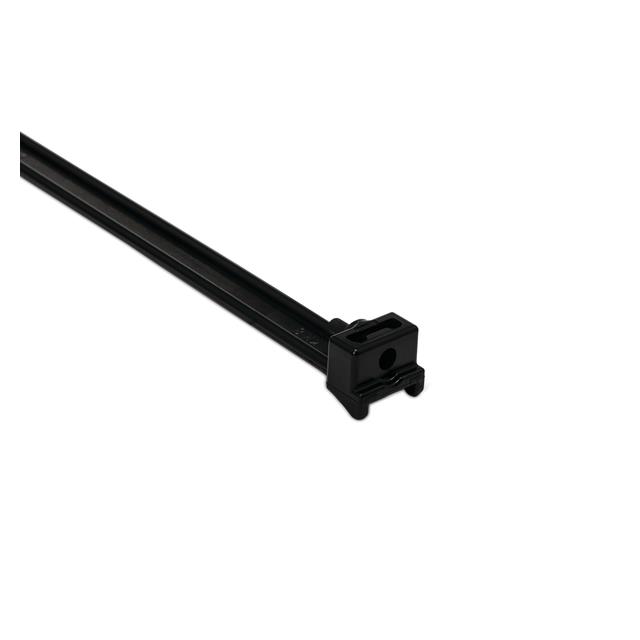

CABLE TIE, 337MM LG, NYLON 6.6 UV, 785N ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
121-83360
ActiveHELLERMANNTYTON
CABLE TIE, 337MM LG, NYLON 6.6 UV, 785N ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 121-83360 |
|---|---|
| Bundle Diameter [diameter] | 85.6 mm |
| Bundle Diameter [diameter] | 3.37 in |
| Color | Black |
| Features | UV Resistant |
| Length - Actual [x] | 1.104 ft |
| Length - Actual [x] | 336.55 mm |
| Length - Approximate | 13.25 in |
| Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Tensile Strength | 175 lbs |
| Tensile Strength | 79.4 kg |
| Width [x] | 7.87 mm |
| Width [x] | 0.31 in |
| Wire/Cable Tie Type | Standard, Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
121-83 Series
Standard, Locking Black 3.37" (85.60mm) 0.310" (7.87mm) 175 lbs (79.40 kg)
