EXN-23356-SV
ActiveBUD INDUSTRIES

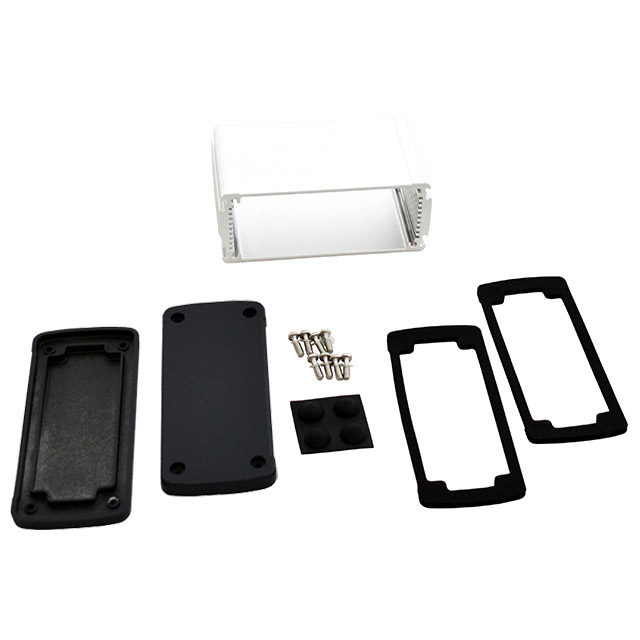

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 69 MM, 115.1 MM, IP66
Deep-Dive with AI
Search across all available documentation for this part.
EXN-23356-SV
ActiveBUD INDUSTRIES
METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, 51.6 MM, 69 MM, 115.1 MM, IP66
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXN-23356-SV |
|---|---|
| Area (L x W) | 79 cm˛ |
| Area (L x W) | 12.3 in˛ |
| Color | Black, Silver |
| Container Type | Box |
| Design | End Panel(s) |
| Features | Card Guides, Sealing Gaskets |
| Height [z] | 51.6 mm |
| Height [z] | 2.031 in |
| Material | Metal, Aluminum |
| Ratings | IP66 |
| Size / Dimension [x] | 115.1 mm |
| Size / Dimension [x] | 4.531 in |
| Size / Dimension [y] | 69 mm |
| Size / Dimension [y] | 2.717 " |
| Thickness | 0.091 in |
| Thickness | 2.3 mm |
| Weight | 0.56 lb |
| Weight | 254.01 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EXN-23356 Series
Box Metal, Aluminum Black, Silver End Panel(s) 4.531" L x 2.717" W (115.10mm x 69.00mm) X 2.031" (51.60mm)
