152I,GY

Active

Serpac

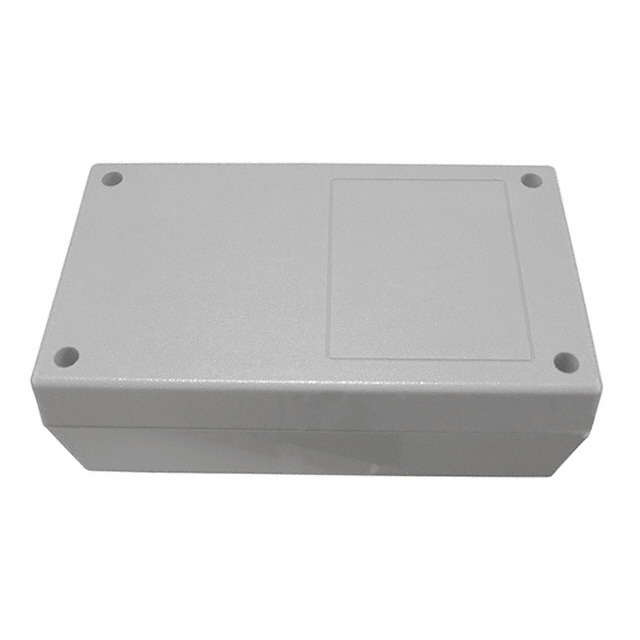

BOX ABS GRAY 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	152I,GY

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	119.29 g
Weight	0.263 lb

Part	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Thickness	Thickness	Color	Design	Area (L x W)	Area (L x W)	Features	Height [z]	Height [z]	Material	Container Type	Material Flammability Rating
Serpac 152I,BK	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	119.29 g	0.263 lb	2.54 mm	0.1 in	Black	Hand Held Split Sides	118 cm²	18.3 in²	PCB Supports	50.8 mm	2 in	Plastic ABS	Box	UL94 HB
Serpac 152I,GY	IP40 NEMA 1	3.25 "	142.75 mm	82.55 mm	5.62 in	119.29 g	0.263 lb	2.54 mm	0.1 in	Gray	Hand Held Split Sides	118 cm²	18.3 in²	PCB Supports	50.8 mm	2 in	Plastic ABS	Box	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.000" (50.80mm)
