Q-3000X000D024I
ActiveAmphenol Custom Cable

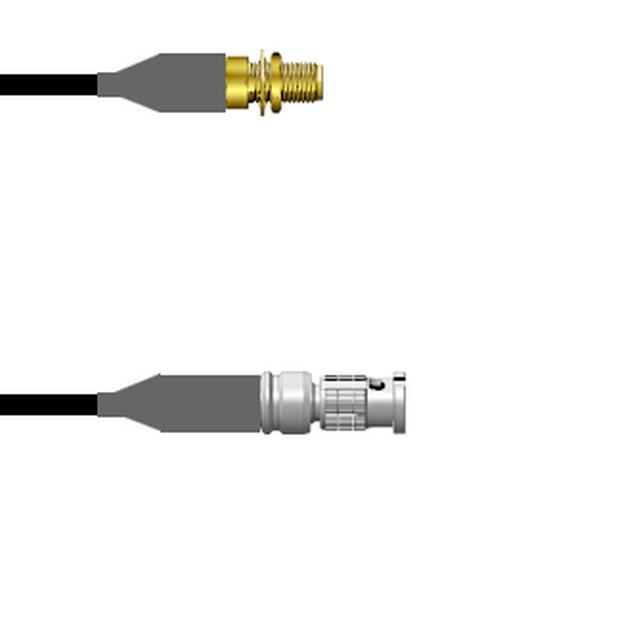

CBL ASSY HDBNC-SMA PLUG-JACK 24"
Deep-Dive with AI
Search across all available documentation for this part.
Q-3000X000D024I
ActiveAmphenol Custom Cable
CBL ASSY HDBNC-SMA PLUG-JACK 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3000X000D024I |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR 195 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 161.25 | |
| 25 | $ 158.12 | |||
| 50 | $ 155.00 | |||
| 100 | $ 151.88 | |||
| 250 | $ 148.75 | |||
Description
General part information
Q-3000X0 Series
Cable Assembly Coaxial HD-BNC to SMA LMR 195 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
