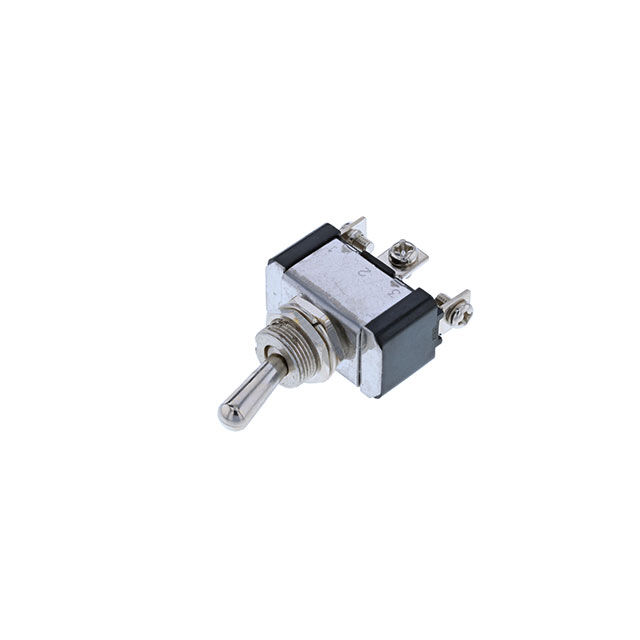

TA1-1F-DC-4
ActiveSwitch Components
SWITCH TOGGLE SPDT 20A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TA1-1F-DC-4
ActiveSwitch Components
SWITCH TOGGLE SPDT 20A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TA1-1F-DC-4 |
|---|---|
| Actuator Length [x] | 16.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 0.75 |
| Circuit | SPDT |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.22 | |
| 10 | $ 4.04 | |||
| 25 | $ 3.88 | |||
| 50 | $ 3.80 | |||
| 100 | $ 3.67 | |||
| 250 | $ 3.40 | |||
| 500 | $ 2.84 | |||
| 1000 | $ 2.60 | |||
Description
General part information
TA1-1F Series
Toggle Switch SPDT Panel Mount
