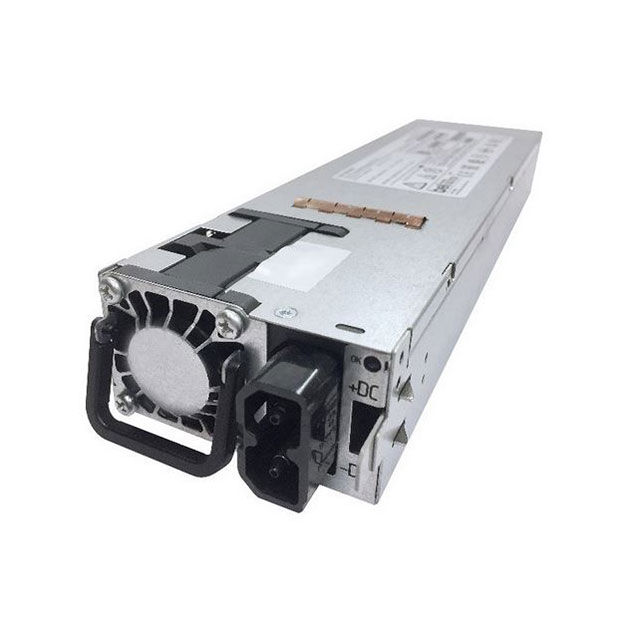

PET1600-12-074RD
ActiveEOS Power India Private Ltd
DC/DC POWER SUPPLY SINGLE-OUT 12V 133.3A 1600W
Deep-Dive with AI
Search across all available documentation for this part.
PET1600-12-074RD
ActiveEOS Power India Private Ltd
DC/DC POWER SUPPLY SINGLE-OUT 12V 133.3A 1600W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PET1600-12-074RD |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EAC, NEMKO |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 93 % |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -5 °C |
| Power (Watts) | 36 W |
| Size / Dimension [x] | 265 mm |
| Size / Dimension [x] | 10.43 in |
| Size / Dimension [y] | 2.89 in |
| Size / Dimension [y] | 73.5 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Type | Front End |
| Voltage - Input (Max) [Max] | -72 V |
| Voltage - Input (Min) [Min] | -40 V |
| Voltage - Isolation | 1.414 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PET1600 Series
Front End DC DC Converter 1 Output 12V 3A -72V Input
Documents
Technical documentation and resources
No documents available
