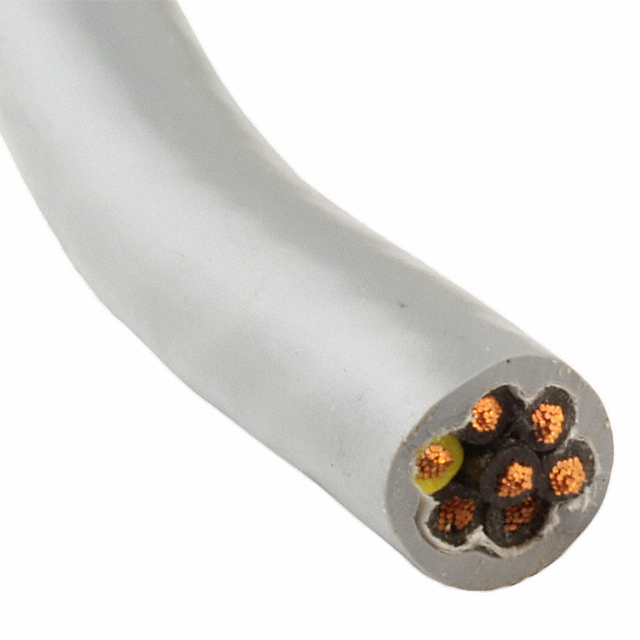

1067 SL002

Active

ALPHA WIRE

CABLE 7COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 16AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1067 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	0.0117 in
Jacket (Insulation) Diameter [diameter]	11.89 mm
Jacket (Insulation) Diameter [diameter]	0.468 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	16 AWG

Part	Conductor Insulation	Voltage	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Cable Type	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Usage	Length	Length
ALPHA WIRE 1067 SL002	Poly-Vinyl Chloride (PVC)	600 V	500 '	152.4 m	1.194 mm	0.047 in	-20 C	80 C	Copper Tinned	Poly-Vinyl Chloride (PVC)	11.89 mm	0.468 in	Slate	Multi-Conductor	7	19	0.0117 in	16 AWG	Communication Control
ALPHA WIRE 1067 SL001	Poly-Vinyl Chloride (PVC)	600 V			1.194 mm	0.047 in	-20 C	80 C	Copper Tinned	Poly-Vinyl Chloride (PVC)	11.89 mm	0.468 in	Slate	Multi-Conductor	7	19	0.0117 in	16 AWG	Communication Control	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.20

General part information

7 Conductor Multi-Conductor Cable Slate 16 AWG 500.0' (152.4m)
