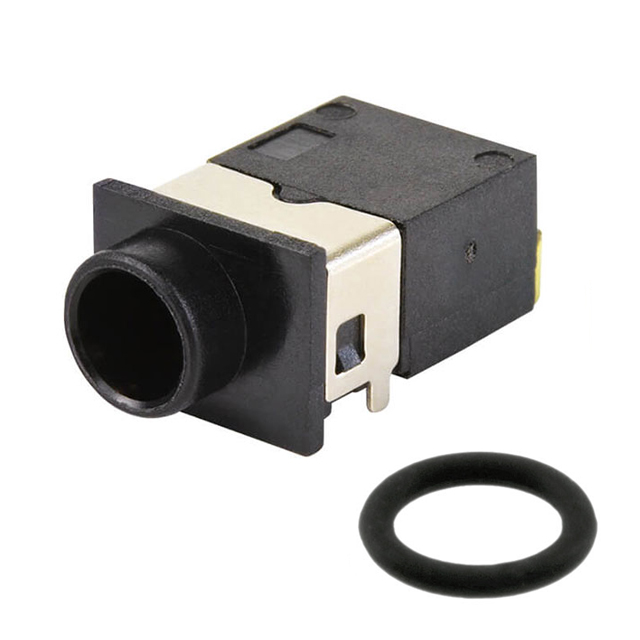

PJ-001AH-67

Active

CUI Devices

POWER JACK, IP67, 2.0 X 5.5, 3.5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PJ-001AH-67

Active

CUI Devices

POWER JACK, IP67, 2.0 X 5.5, 3.5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-001AH-67

Actual Diameter	6.3 mm, 2 mm
Actual Diameter [diameter]	0.079 in, 0.248 in
Body Color	Black
Connector Type	Jack
Contact Material	Copper Alloy, Brass
Contact Material - Plating [custom]	Gold
Current Rating (Amps)	5 A
Features	Board Guide
Gender	Male
Housing Material	Polyamide (PA10T), Nylon 10T
Includes	1 Connector, 1 O-Ring
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Ingress Protection	IP67 - Dust Tight, Waterproof
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	10 mm
Mating Length/Depth	0.394 "
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shielding	Shielded
Termination	Solder
Voltage - Rated	24 VDC

PJ-001 Series

Part	Includes	Mating Length/Depth	Mating Length/Depth	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Body Color	Voltage - Rated	Contact Material - Plating [custom]	Current Rating (Amps)	Connector Type	Gender	Ingress Protection	Number of Positions/Contacts	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Mounting Type	Shielding	Internal Switch(s)	Features	Housing Material	Material Flammability Rating	Actual Diameter	Mating Length/Depth	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]
CUI Devices PJ-001BH-67	1 Connector 1 O-Ring	10 mm	0.394 "	2.5 mm 5.5 mm	0.098 " 0.217 "	-25 °C	85 °C	Brass Copper Alloy	Black	24 VDC	Gold	5 A	Jack	Male	IP67 - Dust Tight Waterproof	2 Conductors 3 Conductors	2.5 mm 6.3 mm	0.098 in 0.248 in	Solder	Through Hole Right Angle	Shielded	Normally Closed Single Switch	Board Guide	Polyamide (PA10T) Nylon 10T	UL94 V-0
CUI Devices PJ-001BH-67	1 Connector 1 O-Ring	10 mm	0.394 "	2.5 mm 5.5 mm	0.098 " 0.217 "	-25 °C	85 °C	Brass Copper Alloy	Black	24 VDC	Gold	5 A	Jack	Male	IP67 - Dust Tight Waterproof	2 Conductors 3 Conductors	2.5 mm 6.3 mm	0.098 in 0.248 in	Solder	Through Hole Right Angle	Shielded	Normally Closed Single Switch	Board Guide	Polyamide (PA10T) Nylon 10T	UL94 V-0
CUI Devices PJ-001AH-67	1 Connector 1 O-Ring	10 mm	0.394 "	2 mm 5.5 mm	0.079 in 0.217 "	-25 °C	85 °C	Brass Copper Alloy	Black	24 VDC	Gold	5 A	Jack	Male	IP67 - Dust Tight Waterproof	2 Conductors 3 Conductors		0.079 in 0.248 in	Solder	Through Hole Right Angle	Shielded	Normally Closed Single Switch	Board Guide	Polyamide (PA10T) Nylon 10T	UL94 V-0	2 mm 6.3 mm
CUI Devices PJ-001DH-67			8.5 mm			-25 °C	85 °C	Brass Copper Alloy	Black	24 VDC	Gold	3.5 A	Jack	Male	IP67 - Dust Tight Waterproof	2 Conductors 3 Conductors			Solder	Through Hole Right Angle	Shielded	Normally Closed Single Switch	Board Guide	Polyamide (PA10T) Nylon 10T	UL94 V-0		0.335 in	0.051 in	3.8 mm	1.3 mm	0.15 in	0.138 in	3.5 mm	1.3 mm	0.051 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.48
		10	$ 4.98
		25	$ 4.72
		50	$ 4.61
		100	$ 4.39
	Tape & Reel (TR)	450	$ 3.73
		900	$ 3.40
		1350	$ 3.18
		2250	$ 3.07
		3150	$ 2.96

Description

General part information

PJ-001 Series

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
