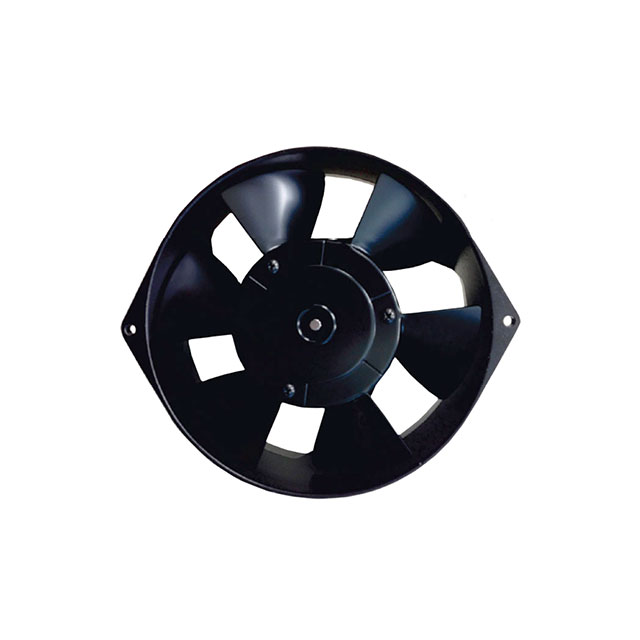

FDA2-17255QBHW3F

Active

Qualtek

FAN AXIAL 172X55MM 230VAC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 172X55MM 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FDA2-17255QBHW3F

Air Flow	6.72 mł/min
Air Flow	240 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	61 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	27 W
RPM	3100 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	172 mm
Size / Dimension [z]	151 mm
Static Pressure	0.531 in H2O
Static Pressure	132.3 Pa
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	816.5 g
Weight	1.8 lbs
Width [y]	55 mm

Part	Static Pressure	Static Pressure	Voltage - Rated	Lifetime @ Temp.	Bearing Type	Approval Agency	Material - Frame	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Weight	Weight	Material - Blade	Width [y]	Termination	RPM	Air Flow	Air Flow	Noise	Ingress Protection
Qualtek FDA2-17255NBHT4F	0.531 in H2O	132.3 Pa	115 VAC	50000 Hrs	Ball	CE cURus TUV	Aluminum	0.21 A	151 mm	Rectangular/Rounded	172 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 W	816.5 g	1.8 lbs	Steel	55 mm	2 Terminals	3100 RPM	240 CFM	6.72 mł/min	61 dB(A)
Qualtek FDA2-17255QBHW3F	0.531 in H2O	132.3 Pa	230 VAC	50000 Hrs	Ball	CE cURus TUV	Aluminum	120 mA	151 mm	Rectangular/Rounded	172 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	27 W	816.5 g	1.8 lbs	Plastic	55 mm	2 Wire Leads	3100 RPM	240 CFM	6.72 mł/min	61 dB(A)	IP54 - Dust Protected Water Resistant
Qualtek FDA2-17255NBHW4F	0.531 in H2O	132.3 Pa	115 VAC	50000 Hrs	Ball	CE cURus TUV	Aluminum	0.21 A	151 mm	Rectangular/Rounded	172 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	25 W	816.5 g	1.8 lbs	Steel	55 mm	2 Wire Leads	3100 RPM	240 CFM	6.72 mł/min	61 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 230VAC Rectangular/Rounded - 172mm L x 151mm H Ball 240.0 CFM (6.72mł/min) 2 Wire Leads
