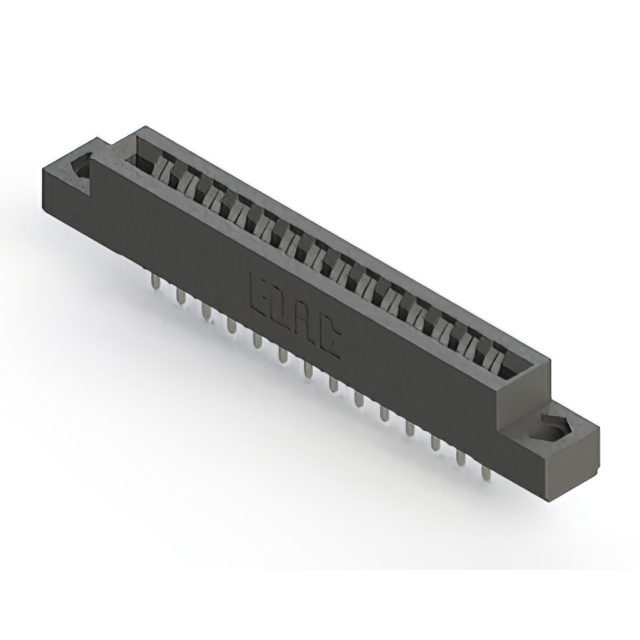

356-014-420-104

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

356-014-420-104

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-014-420-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

356-014 Series

Part	Gender	Contact Finish	Termination Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Read Out	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Number of Positions/Bay/Row [custom]	Color	Termination	Material - Insulation	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 356-014-521-108	Female	Gold	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole	10 Áin	0.25 Ám	Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	2
EDAC Inc. 356-014-421-103	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole			Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	2	0.116 in	2.95 mm
EDAC Inc. 356-014-420-108	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole			Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	2
EDAC Inc. 356-014-400-178	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever				Copper Alloy	14	Black	Solder Eyelet(s)	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	2			Card Guides
EDAC Inc. 356-014-420-104	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole			Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	2	0.156 in	3.96 mm
EDAC Inc. 356-014-500-103	Female	Gold	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever		10 Áin	0.25 Ám	Copper Alloy	14	Black	Solder Eyelet(s)	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	2	0.116 in	2.95 mm
EDAC Inc. 356-014-400-101	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Free Hanging (In-Line)			Copper Alloy	14	Black	Solder Eyelet(s)	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		2
EDAC Inc. 356-014-420-103	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole			Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	2	0.116 in	2.95 mm
EDAC Inc. 356-014-420-168	Female	Tin	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole			Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	2			Card Guides
EDAC Inc. 356-014-520-103	Female	Gold	1	28	-40 °C	105 ░C	0.156 in	3.96 mm	Dual	Cantilever	Panel Mount Through Hole	10 Áin	0.25 Ám	Copper Alloy	14	Black	Solder	Polyester Thermoplastic	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Flush Mount	2	0.116 in	2.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 10.60
Newark	Each	25	$ 17.36
		50	$ 16.80
		100	$ 15.68
		250	$ 15.12
		500	$ 14.28

Description

General part information

356-014 Series

28 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
