A6S-4104-PH(VNM)

Active

Omron Electronics Inc-EMC Div

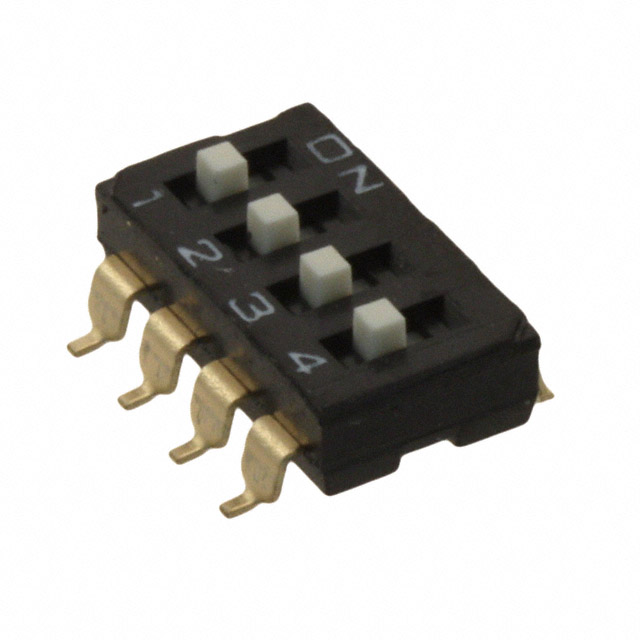

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6S-4104-PH(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6S-4104-PH(VNM)

Actuator Level	Raised
Actuator Type	Slide (Standard)
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	4.4 mm
Height Above Board	0.173 in
Length	0.437 in
Length	11.1 mm
Mechanical Life	1000 Cycles
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

A6S Series

DIP Switches / SIP Switches Tape and Reel Dipswitch

Part	Mechanical Life	Current Rating (Amps)	Termination Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Features	Length	Length	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Actuator Level	Height Above Board	Height Above Board	Voltage Rating	Electrical Life	Circuit	Actuator Type	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6S-9102-H(VNM)	1000 Cycles	25 mA	Gull Wing	9	-20 C	70 °C	Tape Seal	23.8 mm	0.937 in	Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)
Omron Electronics Inc-EMC Div A6S-7102-PH(VNM)	1000 Cycles	25 mA	Gull Wing	7	-20 C	70 °C	Tape Seal	18.72 mm		Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.737 in
Omron Electronics Inc-EMC Div A6S-2101-PH(VNM)	1000 Cycles	25 mA	Gull Wing	2	-20 C	70 °C				Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.237 "	6.02 mm
Omron Electronics Inc-EMC Div A6S-5104-PH(VNM)	1000 Cycles	25 mA	Gull Wing		-20 C	70 °C		13.64 mm	0.537 in	Surface Mount	0.1 in	Full	2.54 mm	Gold	Raised	4.4 mm	0.173 in	24 VDC	1000 Cycles	SPST	Slide (Standard)
Omron Electronics Inc-EMC Div A6S-2102-PMH(VNM)	1000 Cycles	25 mA	Gull Wing	2	-20 C	70 °C	Tape Seal			Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.237 "	6.02 mm
Omron Electronics Inc-EMC Div A6S-3102-PH(VNM)	1000 Cycles	25 mA	Gull Wing		-20 C	70 °C	Tape Seal			Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.337 "	8.56 mm
Omron Electronics Inc-EMC Div A6S-6102-PH(VNM)	1000 Cycles	25 mA	Gull Wing	6	-20 C	70 °C	Tape Seal			Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.637 in	16.18 mm
Omron Electronics Inc-EMC Div A6S-4104-PH(VNM)	1000 Cycles	25 mA	Gull Wing	4	-20 C	70 °C		11.1 mm	0.437 in	Surface Mount	0.1 in	Full	2.54 mm	Gold	Raised	4.4 mm	0.173 in	24 VDC	1000 Cycles	SPST	Slide (Standard)
Omron Electronics Inc-EMC Div A6S-3101-PH(VNM)	1000 Cycles	25 mA	Gull Wing		-20 C	70 °C				Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.337 "	8.56 mm
Omron Electronics Inc-EMC Div A6S-1101-H(VNM)	1000 Cycles	25 mA	Gull Wing	1	-20 C	70 °C				Surface Mount	0.1 in	Full	2.54 mm	Gold	Flush Recessed	3.7 mm	0.146 in	24 VDC	1000 Cycles	SPST	Slide (Standard)	0.137 "	3.48 mm
