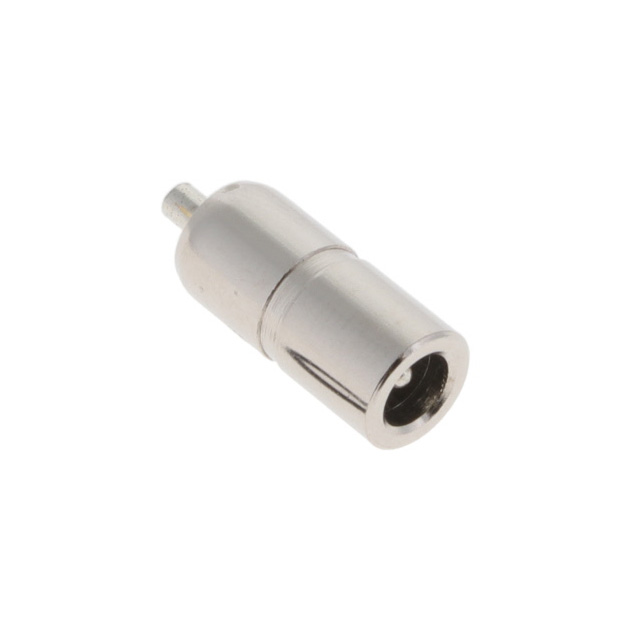

ADC-119-4-WP - ADC-119-4-WP

ADC-119-4-WP

Active
Adam Tech

DC POWER JACK, WATERPROOF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetMedical Industry Brochure+1
ADC-119-4-WP - ADC-119-4-WP

ADC-119-4-WP

Active
Adam Tech

DC POWER JACK, WATERPROOF

Deep-Dive with AI

DocumentsDatasheetMedical Industry Brochure+1

Technical Specifications

Parameters and characteristics for this part

SpecificationADC-119-4-WP
Actual Diameter [custom]3.6 mm
Actual Diameter [custom]0.142 "
Actual Diameter [custom]0.051 in
Actual Diameter [custom]1.3 mm
Body ColorBlack
Connector TypeJack
Contact MaterialBrass
Contact Material - PlatingTin
Current Rating (Amps)1 A
GenderMale
Housing MaterialThermoplastic
Industry Recognized Mating Diameter [custom]0.138 in
Industry Recognized Mating Diameter [custom]3.5 mm
Industry Recognized Mating Diameter [custom]1.3 mm
Industry Recognized Mating Diameter [custom]0.051 in
Ingress ProtectionIPX7 - Waterproof
Internal Switch(s)False
Material Flammability RatingUL94 V-0
Mating Length/Depth0.413 in
Mating Length/Depth10.5 mm
Mounting TypeFree Hanging (In-Line)
Number of Positions/Contacts [custom]2
Number of Positions/Contacts [custom]2
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
ShieldingUnshielded
Voltage - Rated30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.93
10$ 3.00
25$ 2.71
50$ 2.51
100$ 2.32
250$ 2.11
500$ 1.96
1000$ 1.83
3000$ 1.64

Description

General part information

ADC-119 Series

Power Barrel Connector Jack 1.30mm ID (0.051"), 3.50mm OD (0.138") Free Hanging (In-Line)
