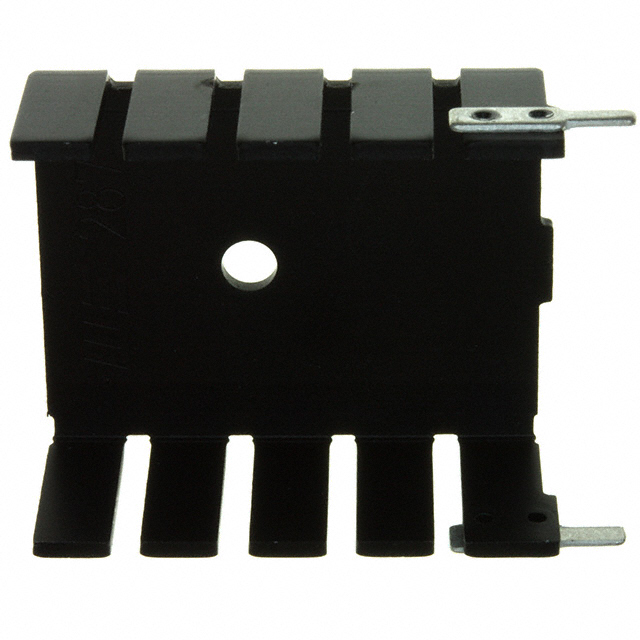

287-1ABH

Active

Wakefield-Vette

HEATSINK VERT MT HOLE BLK TO-220

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK VERT MT HOLE BLK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	287-1ABH

Attachment Method	PC Pin, Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	29.97 mm
Length	1.18 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	4 W, 65 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 7.8 °C/W
Thermal Resistance @ Natural	16.2 °C/W
Type	Board Level, Vertical
Width	25.4 mm
Width [x]	1 in

Part	Package Cooled	Shape	Width	Width [x]	Fin Height [z]	Fin Height [z]	Material	Length	Length	Thermal Resistance @ Natural	Attachment Method	Power Dissipation @ Temperature Rise	Type	Thermal Resistance @ Forced Air Flow	Material Finish
Wakefield-Vette 287-1ABE	TO-220	Rectangular Fins	25.4 mm	1 in	12.7 mm	0.5 in	Aluminum	29.97 mm	1.18 in	16.2 °C/W	Bolt On PC Pin	4 W 65 °C	Board Level Vertical	7.8 °C/W 200 LFM	Black Anodized
Wakefield-Vette 287-1ABH	TO-220	Rectangular Fins	25.4 mm	1 in	12.7 mm	0.5 in	Aluminum	29.97 mm	1.18 in	16.2 °C/W	Bolt On PC Pin	4 W 65 °C	Board Level Vertical	7.8 °C/W 200 LFM	Black Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Sink TO-220 Aluminum 4.0W @ 65°C Board Level, Vertical
