2980490

Active

Phoenix Contact

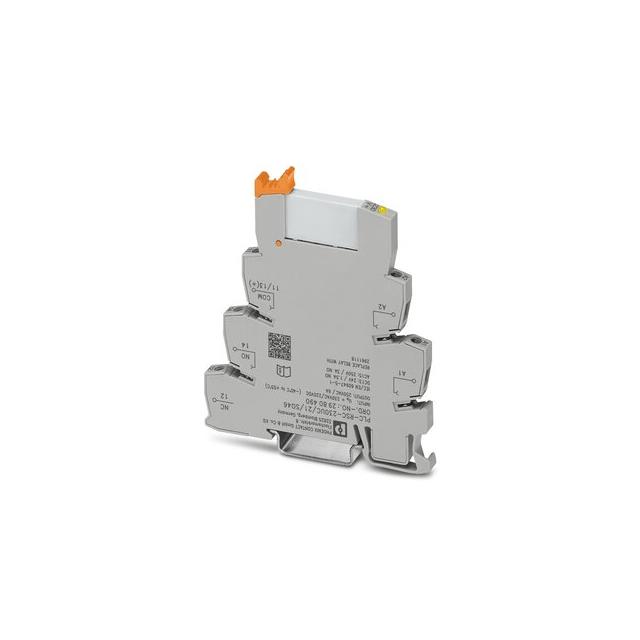

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

Specification	2980490

Approval Agency	UKCA, CE
Coil Current	10 mA
Coil Resistance	26.6 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	7 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Coil Type	Switching Voltage	Approval Agency	Coil Current	Coil Resistance	Operate Time	Mounting Type	Features	Contact Rating (Current)	Contact Form	Contact Material	Relay Type	Release Time
Phoenix Contact 2980461	Screw Terminal	-40 °C	70 °C	24 VDC	Non Latching	250 VAC 250 VDC	CE UKCA	10 mA	2.4 kOhms	8 ms	DIN Rail	Lighted Indicator Socket Included	6 A	DPDT (2 Form C)	Silver Nickel (AgNi)	General Purpose	10 ms
Phoenix Contact 2980490	Screw Terminal	-40 °C	55 °C	230 VAC	Non Latching	250 VAC 250 VDC	CE UKCA	10 mA	26.6 kOhms	7 ms	DIN Rail	Lighted Indicator Socket Included	6 A	SPDT (1 Form C)	Silver Tin Oxide (AgSnO)	General Purpose	20 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 230VAC/DC Coil DIN Rail
