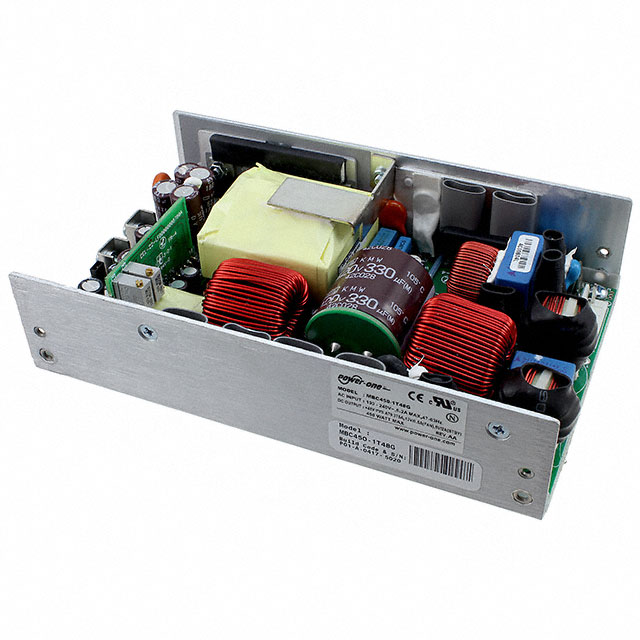

MBC450-1T48G

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 6.25(CONVECTION)A/9.37(FORCED AIR)A 450W MEDICAL 17-PIN

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC POWER SUPPLY SINGLE-OUT 48V 6.25(CONVECTION)A/9.37(FORCED AIR)A 450W MEDICAL 17-PIN

Technical Specifications

Parameters and characteristics for this part

Specification	MBC450-1T48G

Applications	Medical
Approval Agency	CE
Efficiency	83 %
Features	Universal Input, Adjustable Output, Remote Sense, Standby Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	450 W, 300 W
Size / Dimension [x]	6.5 in
Size / Dimension [x]	165.1 mm
Size / Dimension [y]	101.6 mm
Size / Dimension [y]	4 "
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	48 V

Part	Approval Agency	Applications	Mounting Type	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Voltage - Output 1	Efficiency	Operating Temperature [Max]	Features	Voltage - Isolation	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 1
EOS Power India Private Ltd MBC450-1T48G	CE	Medical	Chassis Mount	300 W 450 W	90 VAC	264 VAC	1	48 V	83 %	70 °C	Adjustable Output DC Input Capable Remote Sense Standby Output Universal Input	4.242 kV	Open Frame	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm
EOS Power India Private Ltd MBC450-1T15G	CE	Medical	Chassis Mount	250 W 450 W	90 VAC	264 VAC	1	15 V	83 %	70 °C	Adjustable Output DC Input Capable Remote Sense Standby Output Universal Input	4.242 kV	Open Frame	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	30 A
EOS Power India Private Ltd MBC450-1T05G	CE	Medical	Chassis Mount	155 W 275 W	90 VAC	264 VAC	1	5 V	83 %	70 °C	Adjustable Output DC Input Capable Remote Sense Standby Output Universal Input	4.242 kV	Open Frame	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	55 A
EOS Power India Private Ltd MBC450-1T30G	CE	Medical	Chassis Mount	300 W 450 W	90 VAC	264 VAC	1	30 V	83 %	70 °C	Adjustable Output DC Input Capable Remote Sense Standby Output Universal Input	4.242 kV	Open Frame	101.6 mm	4 "	1.61 "	6.5 in	165.1 mm	41 mm	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
