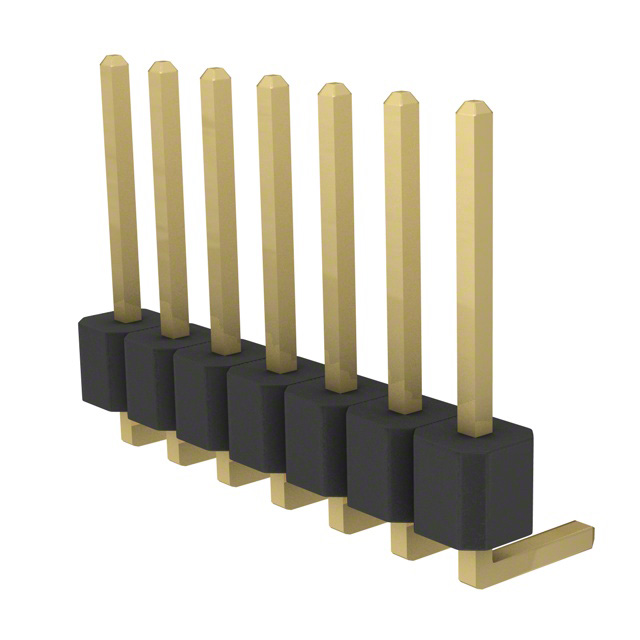

PRPC007SGAN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRPC007SGAN-M71RC
ActiveSullins Connector Solutions
CONN HEADER R/A 7POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRPC007SGAN-M71RC |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating [x] | 0.318 " |
| Contact Length - Mating [x] | 8.08 mm |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
PRPC007 Series
| Part | Current Rating (Amps) | Mounting Type | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Style | Contact Type | Insulation Color | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions Loaded | Number of Positions | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Material | Overall Contact Length | Overall Contact Length | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish - Post | Fastening Type | Material Flammability Rating | Contact Finish Thickness - Post | Insulation Material | Insulation Height [z] | Insulation Height [z] | Connector Type | Number of Rows | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Overall Contact Length | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 14 | Square | 0.1 in | 2.54 mm | Brass | 13.63 mm | 0.537 " | Unshrouded | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 2 | Gold | ||||||
Sullins Connector Solutions | 3 A | Through Hole Right Angle | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | All | 7 | Square | 0.1 in | 2.54 mm | Brass | Unshrouded | 0.23 in | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 1 | Gold | 0.22 in | 5.58 mm | 5.84 mm | ||||||||||
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.42 in | 10.67 mm | All | 7 | Square | 0.1 in | 2.54 mm | Brass | 19.01 mm | Unshrouded | 0.23 in | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 1 | Gold | 5.84 mm | 0.748 in | ||||||||
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | All | 14 | Square | 0.1 in | 2.54 mm | Brass | 16.17 mm | Unshrouded | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 2 | Gold | 0.22 in | 5.58 mm | 0.637 in | ||||||
Sullins Connector Solutions | 3 A | Through Hole Right Angle | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 14 | Square | 0.1 in | 2.54 mm | Brass | Unshrouded | 2.54 mm | 0.1 in | 0.318 " | 8.08 mm | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | Breakaway Header | 2 | Gold | 0.197 in | 5 mm | ||||||||
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 14 | Square | 0.1 in | 2.54 mm | Brass | 11.39 mm | Unshrouded | 2.54 mm | 0.1 in | 0.23 in | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 2 | Gold | 5.84 mm | 0.448 in | ||||||
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.32 in | 8.13 mm | All | 7 | Square | 0.1 in | 2.54 mm | Brass | 16.47 mm | Unshrouded | 0.23 in | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 1 | Gold | 5.84 mm | 0.648 in | ||||||||
Sullins Connector Solutions | 3 A | Through Hole Right Angle | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 7 | Square | 0.1 in | 2.54 mm | Brass | Unshrouded | 0.318 " | 8.08 mm | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 1 | Gold | ||||||||||
Sullins Connector Solutions | 3 A | Through Hole | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 7 | Square | 0.1 in | 2.54 mm | Brass | 13.63 mm | 0.537 " | Unshrouded | 0.318 " | 8.08 mm | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | 0.098 in | 2.5 mm | Breakaway Header | 1 | Gold | ||||||||
Sullins Connector Solutions | 3 A | Through Hole Right Angle | Flash | -40 °C | 105 ░C | Board to Board Cable | Male Pin | Black | Solder | 0.12 in | 3.05 mm | All | 14 | Square | 0.1 in | 2.54 mm | Brass | Unshrouded | 2.54 mm | 0.1 in | 0.23 in | Gold | Push-Pull | UL94 V-0 | Flash | Polybutylene Terephthalate (PBT) | Breakaway Header | 2 | Gold | 5.84 mm | 0.197 in | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
Description
General part information
PRPC007 Series
Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm)
