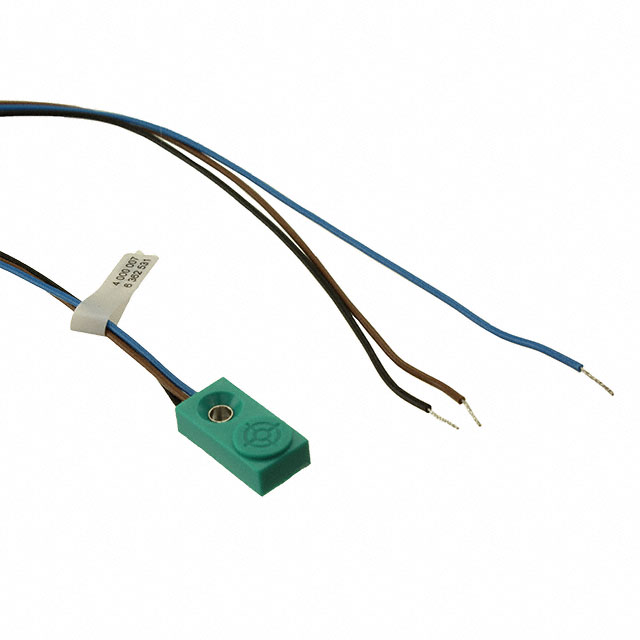

NBB1.5-F79-E0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM NPN

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 1.5MM NPN

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Material - Body	Indicator [custom]	Termination Style	Sensor Type	Shielding	Ingress Protection
PEPPERL+FUCHS NBB1.5-5GM25-E2-V3	1.5 mm	0.059 "	Cylinder Threaded - M5	30 VDC	10 VDC	70 °C	-25 °C	PNP-NO 3-Wire	Stainless Steel	LED	Connector	Inductive	Unshielded	IP67
PEPPERL+FUCHS NBB1.5-8GM40-Z0	1.5 mm	0.059 "	Cylinder Threaded - M8	60 V	5 V	70 °C	-25 °C	SCR-NO 2-Wire	Stainless Steel	LED	Cable	Inductive	Unshielded	IP67
PEPPERL+FUCHS NBB1.5-F79-E0	1.5 mm	0.059 "	Module	30 VDC	5 V	70 °C	-25 °C	NPN-NO 3-Wire	Polyamide (PA)	No Indicator	Cable Leads	Inductive	Unshielded	IP67
PEPPERL+FUCHS NBB1.5-F41-E2-V3	1.5 mm	0.059 "	Module	30 VDC	10 VDC	70 °C	-25 °C	PNP-NO 3-Wire	Nickel-Plated Brass	LED	Connector	Inductive	Unshielded	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 1.5MM NPN

Technical documentation and resources
