095-850-218L050
ActiveAmphenol RF

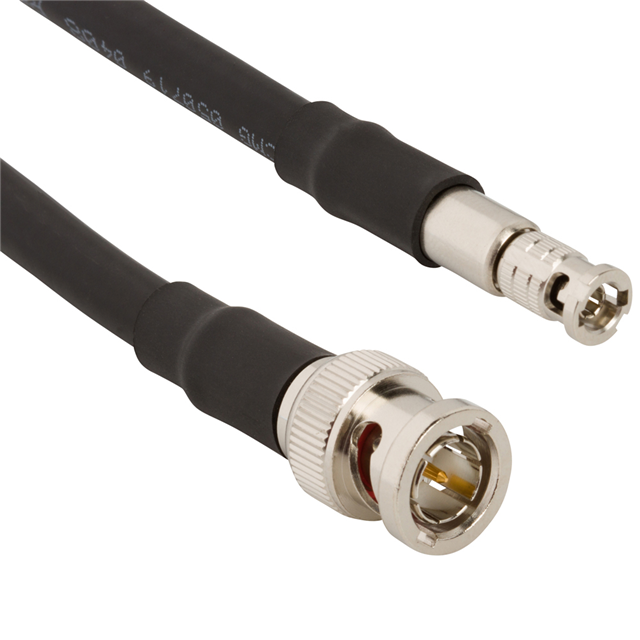

CBL ASSY BNC-HDBNC PLUG-PLUG 50'
Deep-Dive with AI
Search across all available documentation for this part.
095-850-218L050
ActiveAmphenol RF
CBL ASSY BNC-HDBNC PLUG-PLUG 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-218L050 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden 4694R |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 12 GHz |
| Length | 50 ft |
| Length | 15.2 m |
| Length | 50 ft |
| Overall Impedance | 75 Ohms |
| Style | BNC to HD-BNC |
095-850 Series
...
| Part | 2nd Connector Mounting Type | 2nd Connector | 1st Connector Mounting Type | 1st Connector | 2nd Contact Gender | 1st Contact Gender | Overall Impedance | Features | Frequency - Max [Max] | Length | Length | Length | Style | Cable Type | Color | Cable Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Style | 1st Connector Mounting Feature | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Free Hanging (In-Line) | HD-BNC Plug | Free Hanging (In-Line) | BNC Plug | Male | Male | 75 Ohms | Shielded | 12 GHz | 50 ft | 15.2 m | 50 ft | BNC to HD-BNC | Belden 4694R | Black | |||||||
Amphenol RF | Free Hanging (In-Line) | HD-BNC Plug | Free Hanging (In-Line) | BNC Jack | Male | Female | 75 Ohms | Shielded | 12 GHz | 4.9 ft | 1.5 m | 59.1 in | BNC to HD-BNC | Belden 4505R | Black | |||||||
Amphenol RF | Free Hanging (In-Line) | BNC Jack | Free Hanging (In-Line) | BNC Jack | Female | Female | 50 Ohms | Shielded | 6000 MHz | 304.8 mm | 12 " | BNC to BNC | RG-174 | Black | 50 Ohms | 85 °C | -40 °C | |||||
Amphenol RF | Free Hanging (In-Line) | BNC Plug | Free Hanging (In-Line) | BNC Plug | Male | Male | 50 Ohms | 3 GHz | 16.4 ft | 5 m | 196.9 in | BNC to BNC | LMR 400 | Black | 50 Ohms | 85 °C | -40 °C | |||||
Amphenol RF | Free Hanging (In-Line) | HD-BNC Plug | Free Hanging (In-Line) | Male | Male | 75 Ohms | Shielded | 4 GHz | 50 cm | 19.69 " | 1.0/2.3 | Belden 1694A | Black | HD-BNC | ||||||||
Amphenol RF | Free Hanging (In-Line) | AMC Plug Right Angle U.FL (UMCC) | Panel Mount | BNC Jack | Female | Female | 50 Ohms | Shielded | 4 GHz | U.FL (UMCC) AMC to BNC | RG-178 | Copper | 50 Ohms | Bulkhead - Front Side Nut | 150 mm | 5.906 " | ||||||
Amphenol RF | Free Hanging (In-Line) | BNC Plug | Free Hanging (In-Line) | BNC Plug | Male | Male | 75 Ohms | Shielded | 4 GHz | 152.4 mm | 6 in | BNC to BNC | Belden 1855A | Black | ||||||||
Amphenol RF | Free Hanging (In-Line) | HD-BNC Plug | Free Hanging (In-Line) | BNC Jack | Male | Female | 75 Ohms | Shielded | 12 GHz | 50 cm | 19.69 " | BNC to HD-BNC | Belden 4694R | Black | ||||||||
Amphenol RF | Free Hanging (In-Line) | RP-TNC Jack | Free Hanging (In-Line) | RP-TNC Plug | Male | Female | 50 Ohms | Shielded | 8 GHz | 304.8 mm | 12 " | RP-TNC to RP-TNC | LMR 400 | Black | 50 Ohms | |||||||
Amphenol RF | Free Hanging (In-Line) | HD-BNC Plug | Free Hanging (In-Line) | HD-BNC Plug | Male | Male | 75 Ohms | Shielded | 12 GHz | 304.8 mm | 12 " | HD-BNC to HD-BNC | Belden 4794R | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 25 | $ 200.29 | |
Description
General part information
095-850 Series
Cable Assembly Coaxial BNC to HD-BNC Belden 4694R 600.0" (15.2m) 50.0'
Documents
Technical documentation and resources
No documents available
