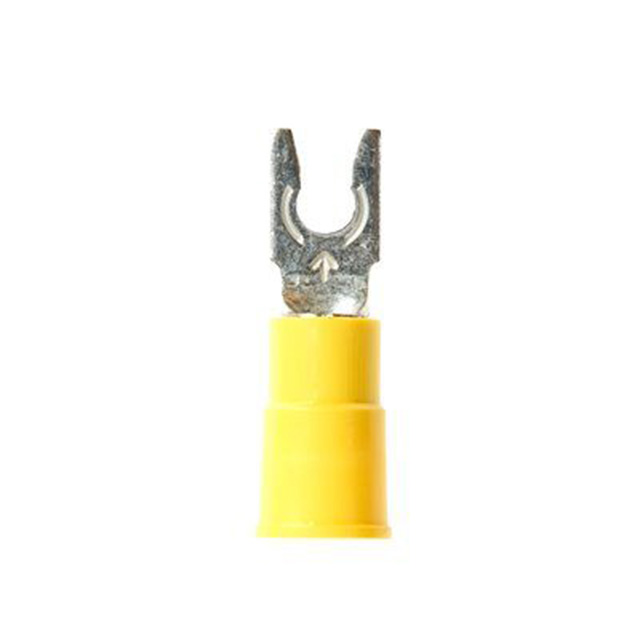

LFV10-8Q

Active

3M (TC)

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Search across all available documentation for this part.

Active

3M (TC)

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Technical Specifications

Parameters and characteristics for this part

Specification	LFV10-8Q

Color	Yellow
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Insulated
Insulation Diameter	0.25 "
Insulation Diameter	6.35 mm
Length - Overall	26.16 mm
Length - Overall [x]	1.03 in
Length - Ring Center to Termination	7.11 mm
Length - Ring Center to Termination	0.28 in
Length - Termination	13.97 mm
Length - Termination	0.55 in
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Width - Outer Edges [y]	8.13 mm
Width - Outer Edges [y]	0.32 in
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Terminal Type	Insulation Diameter	Insulation Diameter	Insulation	Material - Insulation	Color	Length - Overall [x]	Length - Overall	Stud/Tab Size	Features	Contact Material	Length - Ring Center to Termination	Length - Ring Center to Termination	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Termination	Length - Termination	Length - Termination	Wire Gauge [Max]	Wire Gauge [Min]
3M (TC) LFV10-8Q	Snap Spring	0.25 "	6.35 mm	Insulated	Vinyl	Yellow	1.03 in	26.16 mm	8 Stud	Butted Seam	Copper ETP	7.11 mm	0.28 in	Tin	8.13 mm	0.32 in	Free Hanging (In-Line)	Crimp	13.97 mm	0.55 in	12 AWG	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
