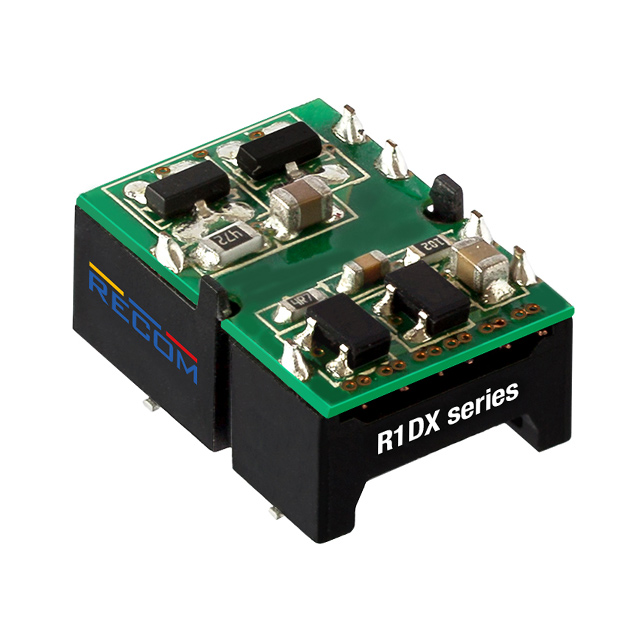

R1DX-0505/H-TRAY

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, MODULE, 1:1, 1 W, 2 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +2

R1DX-0505/H-TRAY

Active

RECOM Power

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, MODULE, 1:1, 1 W, 2 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1DX-0505/H-TRAY

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	78 %
Features	OCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Size / Dimension [x]	15.2 mm
Size / Dimension [x]	0.6 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

R1DX-0505 Series

Isolated DC/DC Converters - SMD 1W 5Vin +/-15Vout 33mA Dual Out

Part	Efficiency	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]
RECOM Power R1DX-0505/H-TRAY	78 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2	100 mA	100 mA	Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-5 V	OCP	4.5 V	5.5 V	10-SMD Module 6 Leads	5 V
RECOM Power R1DX-0509/H-R	78 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2			Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-9 V		4.5 V	5.5 V	10-SMD 6 Leads	9 V
RECOM Power R1DX-0505-R	78 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2	100 mA	100 mA	Surface Mount	1000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-5 V		4.5 V	5.5 V	10-SMD 6 Leads	5 V
RECOM Power R1DX-0515-R	80 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2		33 mA	Surface Mount	1000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-15 V		4.5 V	5.5 V	10-SMD 6 Leads	15 V
RECOM Power R1DX-0512/H-TRAY	80 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2			Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-12 V	OCP	4.5 V	5.5 V	10-SMD Module 6 Leads	12 V	42 mA	42 mA
RECOM Power R1DX-0512/H-R	80 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2			Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-12 V		4.5 V	5.5 V	10-SMD 6 Leads	12 V	42 mA	42 mA
RECOM Power R1DX-0515/H-TRAY	80 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2		33 mA	Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-15 V	OCP	4.5 V	5.5 V	10-SMD Module 6 Leads	15 V
RECOM Power R1DX-0505/H-R	78 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2	100 mA	100 mA	Surface Mount	3000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-5 V		4.5 V	5.5 V	10-SMD 6 Leads	5 V
RECOM Power R1DX-0505-TRAY	78 %	ITE (Commercial)	Isolated Module	-40 °C	203 °F	2	100 mA	100 mA	Surface Mount	1000 V	8.5 mm	15.2 mm	0.33 in	0.6 in	10.7 mm	0.42 "	-5 V	OCP	4.5 V	5.5 V	10-SMD Module 6 Leads	5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.77
		5	$ 5.44
		10	$ 5.31
		25	$ 5.13
		50	$ 5.00
		100	$ 4.88
		250	$ 4.72
		440	$ 4.62
Newark	Each	25	$ 5.71
		50	$ 5.20
		100	$ 4.92
		250	$ 4.79
Sager	N/A	1	$ 5.27
		5	$ 5.09
		10	$ 4.85
		25	$ 4.70
		50	$ 4.65
		100	$ 4.52
		250	$ 4.21

Description

General part information

R1DX-0505 Series

Isolated DC/DC Converters - SMD 1W 5Vin +/-15Vout 33mA Dual Out

Documents

Technical documentation and resources

R1DX-0505/H-TRAY

Deep-Dive with AI

R1DX-0505/H-TRAY

Deep-Dive with AI

Technical Specifications

R1DX-0505 Series

Pricing

Description

R1DX-0505 Series

Documents

Datasheet

Datasheet

Technical Data Sheet EN

Operating Instructions EN

R1DX-0505 Series
