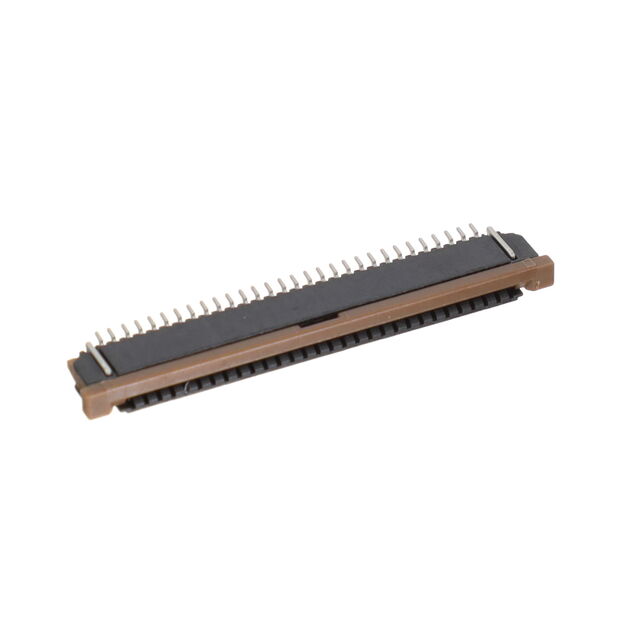

SFW30R-4STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 30POS 1MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFW30R-4STE1LF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 30POS 1MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFW30R-4STE1LF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered, Notched |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Zero Insertion Force (ZIF), Solder Retention |
| FFC, FCB Thickness [z] | 0.33 mm, 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Housing Color | Black |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 30 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 100 V |
SFW30R Series
| Part | Pitch [x] | Pitch [x] | Voltage Rating | Contact Material | Number of Positions | Locking Feature | FFC, FCB Thickness | Flat Flex Type | Housing Material | Material Flammability Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector/Contact Type | Cable End Type | Actuator Color | Housing Color | Contact Finish | Actuator Material | Mating Cycles | Height Above Board [z] | Height Above Board [z] | Termination | FFC, FCB Thickness [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | 0.3 mm | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Top | Tapered | Black | Brown | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Solder | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | 0.33 mm | FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Notched | Brown | Brown | Gold | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Solder | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | 0.3 mm | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Straight Tapered | Brown | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Kinked Pin | |||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | 0.33 mm | FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Tapered | Black | Brown | Gold | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Solder | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | 0.3 mm | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Straight Tapered | Black | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Kinked Pin | ||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Top | Straight Tapered | Black | Brown | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Solder | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Straight Tapered | Black | Black | Tin | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 20 | 0.106 in | 2.7 mm | Solder | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | 0.039 in | 1 mm | Phosphor Bronze | 30 | Slide Lock | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | Contacts Bottom | Straight Tapered | Black | Brown | Tin Alloy | Polyphenylene Sulfide (PPS) Glass Filled | 0.106 in | 2.7 mm | Solder | 0.3 mm 0.33 mm | ||||||
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | CIC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Bottom | Straight Tapered | Black | Brown | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 10 | 0.106 in | 2.7 mm | Solder | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | 0.039 in | 1 mm | 100 V | Phosphor Bronze | 30 | Slide Lock | FFC FPC | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Surface Mount Right Angle | 105 ░C | -55 °C | Contacts Top | Notched Tapered | Brown | Black | Tin | Polyphenylene Sulfide (PPS) Glass Filled | 20 | 0.106 in | 2.7 mm | Solder | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) |
