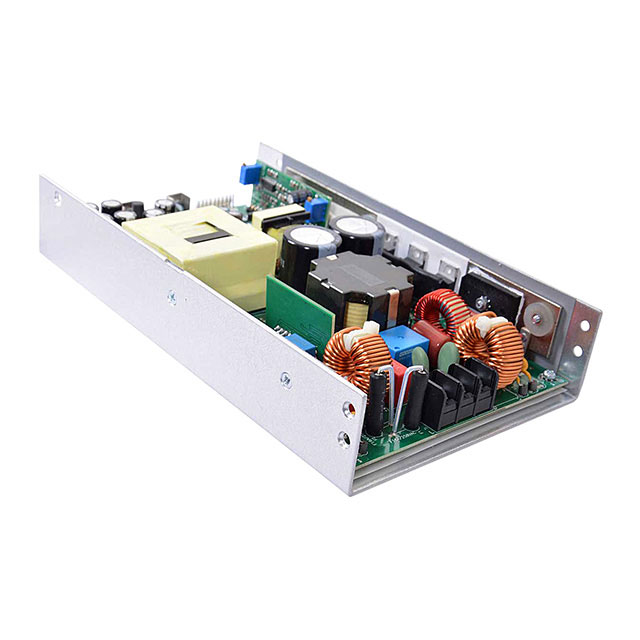

ABC800-1T24
ObsoleteEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 24V 25(CONVECTION)A/33.33(FORCED AIR)A 800W 17-PIN
Deep-Dive with AI
Search across all available documentation for this part.
ABC800-1T24
ObsoleteEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 24V 25(CONVECTION)A/33.33(FORCED AIR)A 800W 17-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC800-1T24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, NEMKO, UL, CE |
| Current - Output 1 | 25 A |
| Efficiency | 93 % |
| Features | Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 800 W, 600 W |
| Size / Dimension [x] | 216 mm |
| Size / Dimension [x] | 8.5 in |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.61 " |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 390 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 257.98 | |
| 2 | $ 253.19 | |||
Description
General part information
ABC800 Series
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 390 VDC Input
