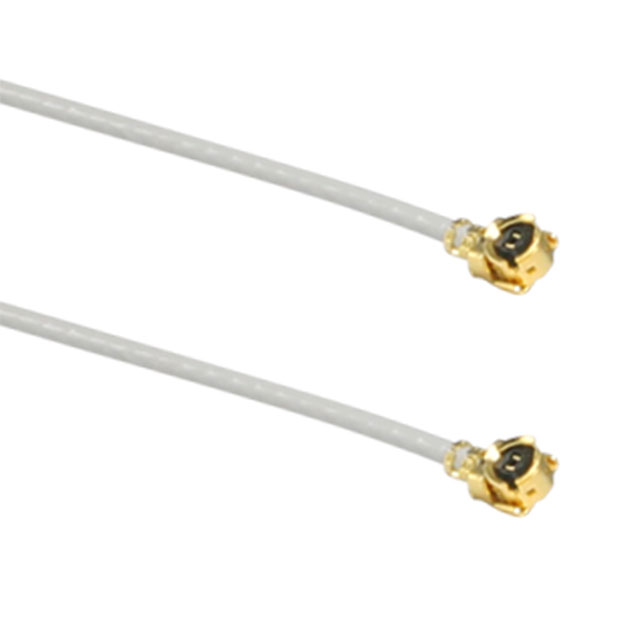

CSI-UFFR-300-UFFR

Active

TE Connectivity Linx

CBL ASSY U.FL PLUG-PLUG 11.811"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY U.FL PLUG-PLUG 11.811"

Technical Specifications

Parameters and characteristics for this part

Part	2nd Connector Mounting Type	Overall Impedance	1st Connector	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	Color	Cable Type	2nd Contact Gender	1st Contact Gender	Style	Length	Length	Length [x]	Length [x]
TE Connectivity Linx CSI-UFFR-200-UFFR	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC) Plug Right Angle	U.FL (UMCC) Plug Right Angle	3 GHz	Free Hanging (In-Line)	Gray	1.13mm OD Coaxial Cable	Female	Female	U.FL (UMCC) to U.FL (UMCC)	7.874 in	200 mm
TE Connectivity Linx CSI-UFFR-100-UFFR	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC) Plug Right Angle	U.FL (UMCC) Plug Right Angle	3 GHz	Free Hanging (In-Line)	Gray	1.13mm OD Coaxial Cable	Female	Female	U.FL (UMCC) to U.FL (UMCC)			0.1 m	3.937 in
TE Connectivity Linx CSI-UFFR-300-UFFR	Free Hanging (In-Line)	50 Ohms	U.FL (UMCC) Plug Right Angle	U.FL (UMCC) Plug Right Angle	3 GHz	Free Hanging (In-Line)	Gray	1.13mm OD Coaxial Cable	Female	Female	U.FL (UMCC) to U.FL (UMCC)			300 mm	11.811 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.13mm OD Coaxial Cable 11.811" (300.00mm)
