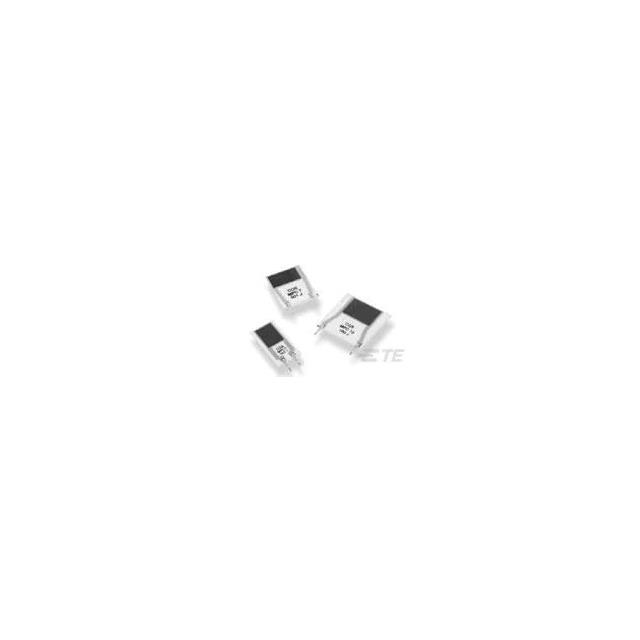

1-1623776-0

Active

TE Connectivity Passive Product

RES 2K OHM 5% 5W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 2K OHM 5% 5W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1-1623776-0

Composition	Thick Film
Features	Safety, Non-Inductive, Flame Proof
Height - Seated (Max) [Max] [z]	25.4 mm
Height - Seated (Max) [Max] [z]	25.4 mm
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	5 W
Resistance	2 kOhms
Size / Dimension [x]	0.5 in
Size / Dimension [x]	12.7 mm
Size / Dimension [y]	2.54 mm
Size / Dimension [y]	0.1 in
Temperature Coefficient	100 ppm/°C
Tolerance	5 %

Part	Number of Terminations	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Composition	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Power (Watts)	Package / Case
TE Connectivity Passive Product 1-1623776-0	2	Flame Proof Non-Inductive Safety	2.54 mm	0.1 in	0.5 in	12.7 mm	Thick Film	2 kOhms	25.4 mm	25.4 mm	100 ppm/°C	-55 °C	125 °C	5 %	5 W	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 kOhms ±5% 5W Through Hole Resistor Radial Flame Proof, Non-Inductive, Safety Thick Film

Technical documentation and resources

No documents available
