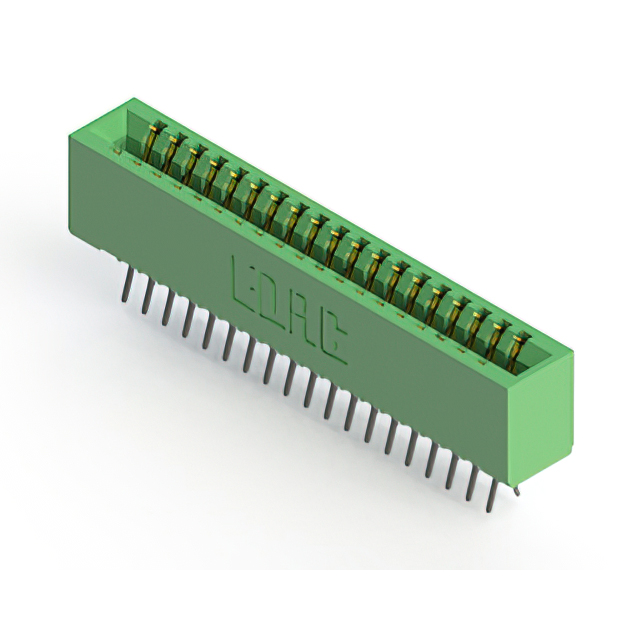

341-038-556-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 38 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

341-038-556-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 38 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-038-556-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-038 Series

Part	Color	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Contact Finish	Contact Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Rows	Mounting Type	Number of Positions/Bay/Row [custom]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Pitch [x]	Pitch [x]	Number of Positions	Features
EDAC Inc. 341-038-522-104	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	1	Through Hole	38	Copper Alloy	-40 °C	105 ░C	Single	2.54 mm	0.1 in	38
EDAC Inc. 341-038-500-208	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		4-40 Flush Mount Threaded Insert Top Opening		2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	Through Hole	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38
EDAC Inc. 341-038-520-108	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge		4-40 Flush Mount Threaded Insert Top Opening		1	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	1	Through Hole	38	Copper Alloy	-40 °C	105 ░C	Single	2.54 mm	0.1 in	38
EDAC Inc. 341-038-555-207	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		Flush Mount M3 Threaded Insert Top Opening		2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	Board Edge Straddle Mount	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38	Card Extender
EDAC Inc. 341-038-500-201	Green	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder Eyelet(s)	2	Through Hole	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38
EDAC Inc. 341-038-521-201	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	2	Through Hole	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38
EDAC Inc. 341-038-524-107	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge		Flush Mount M3 Threaded Insert Top Opening		1	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	1	Through Hole	38	Copper Alloy	-40 °C	105 ░C	Single	2.54 mm	0.1 in	38
EDAC Inc. 341-038-556-201	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge				2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	2	Board Edge Straddle Mount	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38	Card Extender
EDAC Inc. 341-038-522-204	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	2	Through Hole	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38
EDAC Inc. 341-038-560-202	Green	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2	Gold	Semi Bellows	Female	10 Áin	0.25 Ám	Solder	2	Board Edge Straddle Mount	19	Copper Alloy	-40 °C	105 ░C	Dual	2.54 mm	0.1 in	38	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.19
Newark	Each	1	$ 13.10
		100	$ 8.01
		250	$ 7.44
		500	$ 6.38
		1000	$ 5.22

Description

General part information

341-038 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
