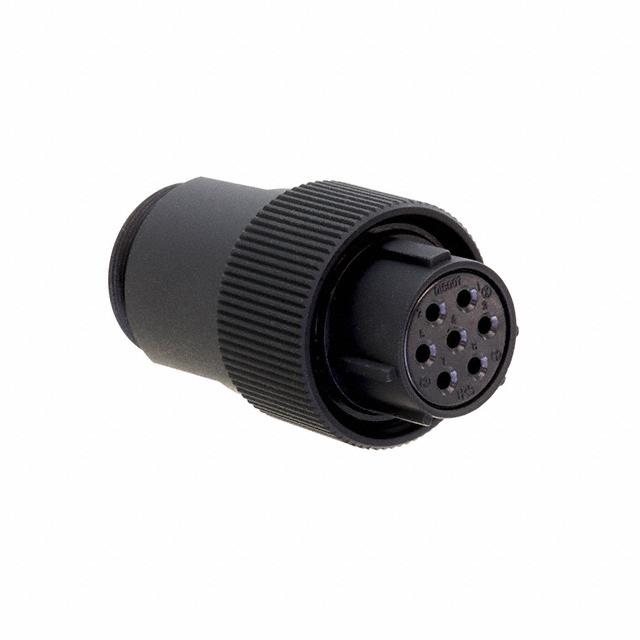

JR16WP-7S(31)

LTB

Hirose Electric USA, Inc.

CONN PLUG FMALE 7P SOLDER CUP

Deep-Dive with AI

DocumentsJR-W Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR16WP-7S(31)

Applications	Telecommunications, Industrial, Automotive
Backshell Material, Plating	Black Chrome, Brass
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

JR16WP Series

Part	Material Flammability Rating	Features	Contact Shape	Type	Orientation	Connector Type	Shell Material	Contact Size	Housing Color	Insert Material	Shell Size - Insert	Note	Contact Type	Shell Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Current Rating (Amps)	Primary Material	Voltage Rating	Number of Positions	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Backshell Material, Plating	Applications	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. JR16WP-3SC(71)	UL94 V-0	Backshell Coupling Nut	Circular	For Female Sockets	Keyed	Plug Housing	Aluminum Alloy	1.6 mm	Black	Polycarbonate (PC)	16	Contacts Not Included	Crimp	Chrome	Free Hanging (In-Line)	-25 °C	85 °C	Unshielded	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. JR16WP-7S
Hirose Electric USA, Inc. JR16WP-7S(31)	UL94 V-0	Backshell Coupling Nut			Keyed	Female Sockets Plug	Aluminum Alloy			Phenol Formaldehyde (PF)	16			Black Chromium	Free Hanging (In-Line)	-25 °C	85 °C	Unshielded	IP67/IP68 - Dust Tight Waterproof	10 A	Metal	100 VAC 140 VDC	7	Black	78.7 µin	2 µm	Copper Alloy	Silver	Black Chrome Brass	Automotive Industrial Telecommunications
Hirose Electric USA, Inc. JR16WP-10SC(31)	UL94 V-0	Backshell Coupling Nut	Circular	For Female Sockets	Keyed	Plug Housing	Aluminum Alloy	1 mm	Black	Polycarbonate (PC)	16	Contacts Not Included	Crimp	Chrome	Free Hanging (In-Line)	-25 °C	85 °C	Unshielded	IP67/IP68 - Dust Tight Waterproof				10
Hirose Electric USA, Inc. JR16WP-7P(71)	UL94 V-0	Backshell Coupling Nut			Keyed	Male Pins Plug	Aluminum Alloy			Phenol Formaldehyde (PF)	16			Black Chromium	Free Hanging (In-Line)	-25 °C	85 °C		IP67/IP68 - Dust Tight Waterproof	10 A	Metal	100 VAC 140 VDC	7	Black		118.1 µin	Copper Alloy	Silver	Black Chrome Brass	Automotive Industrial Telecommunications	3 µm
Hirose Electric USA, Inc. JR16WP-10P
Hirose Electric USA, Inc. JR16WP-10S(31)	UL94 V-0	Backshell Coupling Nut			Keyed	Female Sockets Plug	Aluminum Alloy			Phenol Formaldehyde (PF)	16			Black Chromium	Free Hanging (In-Line)	-25 °C	85 °C	Unshielded	IP67/IP68 - Dust Tight Waterproof	5 A	Metal	100 VAC 140 VDC	10	Black	78.7 µin	2 µm	Copper Alloy	Silver	Black Chrome Brass	Automotive Industrial Telecommunications

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.77
		10	$ 24.53
		25	$ 22.23
		50	$ 20.67
		100	$ 19.27
		250	$ 17.61
		500	$ 16.49

Description

General part information

JR16WP Series

7 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

JR-W Series Datasheet

Datasheet
