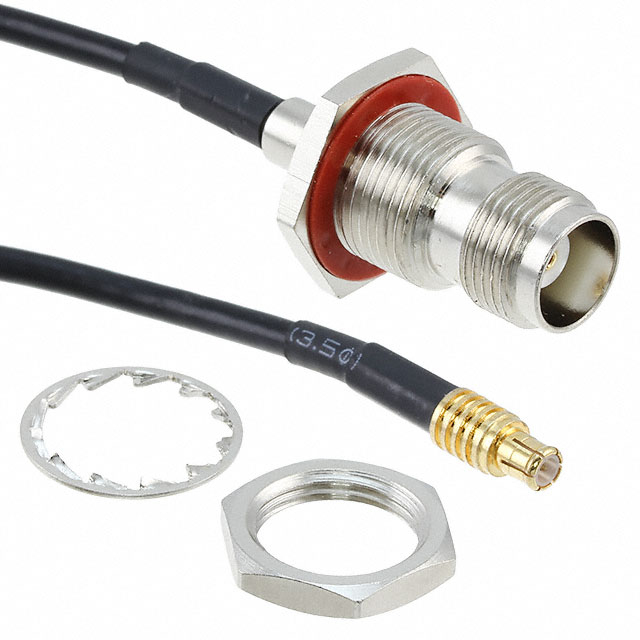

CBA-TNCF-MCXM

Active

RF SOLUTIONS

COAX CBL MCX TO TNC 7.8"

Search across all available documentation for this part.

Active

RF SOLUTIONS

COAX CBL MCX TO TNC 7.8"

Technical Specifications

Parameters and characteristics for this part

Specification	CBA-TNCF-MCXM

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Length	7.874 in
Length	200 mm
Overall Impedance	50 Ohms

Part	2nd Connector	2nd Connector Mounting Type	Overall Impedance	Color	Cable Impedance	2nd Contact Gender	Length	Length	1st Connector Mounting Type	1st Connector	Cable Type	1st Contact Gender	2nd Connector Mounting Feature
RF SOLUTIONS CBA-TNCF-MCXM	TNC Jack	Panel Mount	50 Ohms	Black	50 Ohms	Female	7.874 in	200 mm	Free Hanging (In-Line)	MCX Plug	RG-174	Male	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.32

General part information

Cable Assembly Coaxial MCX to TNC RG-174 7.874" (200.00mm)

Technical documentation and resources

No documents available
