814-030
ActiveBivar Inc.

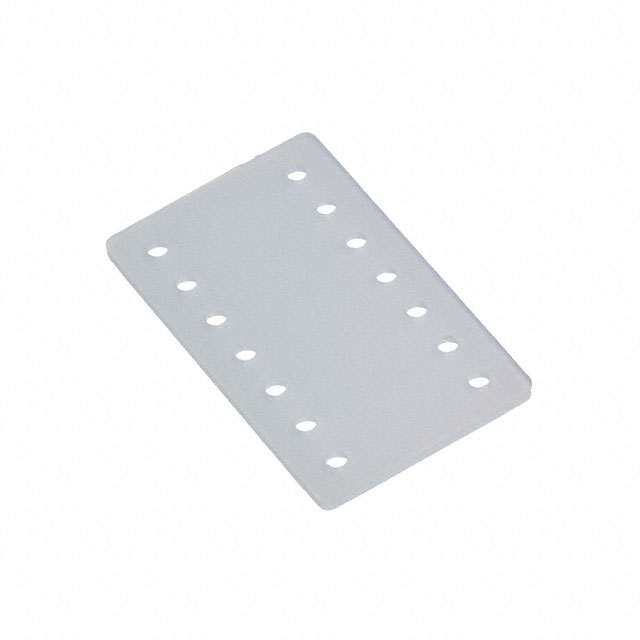

PERM-O-PADS, RECTANGULAR, IC MOUNT, 14 PINS, 0.75 LENGTH, 0.45 WIDTH, 0.03 THICK, NYLON, NATURAL / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
814-030
ActiveBivar Inc.
PERM-O-PADS, RECTANGULAR, IC MOUNT, 14 PINS, 0.75 LENGTH, 0.45 WIDTH, 0.03 THICK, NYLON, NATURAL / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 814-030 |
|---|---|
| Color | Natural |
| Height [z] | 0.03 in |
| Height [z] | 0.76 mm |
| Length | 0.75 in |
| Length | 0.75 " |
| Length | 19.05 mm |
| Material | Nylon |
| Shape | Rectangular |
| Type | Mount |
| Usage | 14-DIP, Integrated Circuits |
| Width [y] | 0.45 in |
| Width [y] | 11.43 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.34 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.22 | |||
Description
General part information
814-030 Series
Component Mount Integrated Circuits, 14-DIP Rectangular 0.030" (0.76mm) Natural
