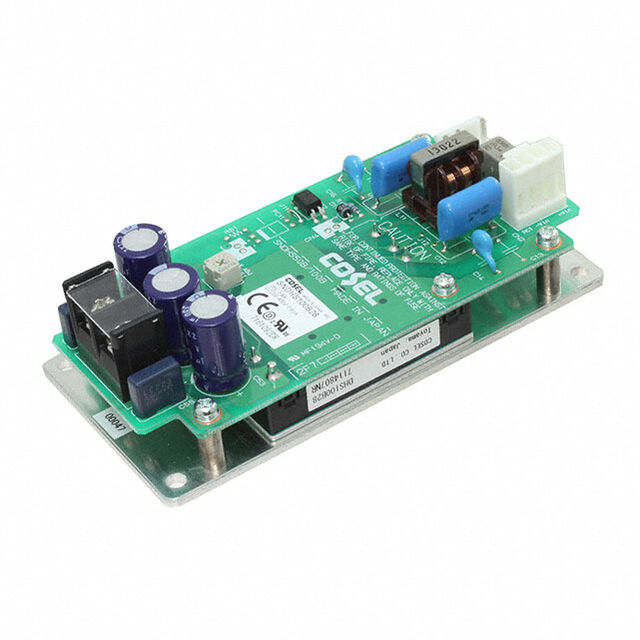

SNDHS50B28

Active

Cosel USA, Inc.

DC/DC CONVERTER 28V 50W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC/DC CONVERTER 28V 50W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Current - Output (Max) [Max]	Efficiency
Cosel USA, Inc. SNDHS50B24	50 W	400 V	2.42 in	1.75 "	5 in	61.5 mm	127 mm	44.5 mm	1	ITE (Commercial)	200 V	Open Frame	24 V	-20 °C	95 °C	Chassis Mount	CE cURus	2.1 A
Cosel USA, Inc. SNDHS50B05	50 W	400 V	2.42 in	1.75 "	5 in	61.5 mm	127 mm	44.5 mm	1	ITE (Commercial)	200 V	Open Frame	5 V	-20 °C	95 °C	Chassis Mount	CE cURus	10 A	79 %
Cosel USA, Inc. SNDHS50B15	51 W	400 V	2.42 in	1.75 "	5 in	61.5 mm	127 mm	44.5 mm	1	ITE (Commercial)	200 V	Open Frame	15 V	-20 °C	95 °C	Chassis Mount	CE cURus	3.4 A
Cosel USA, Inc. SNDHS50B28	50 W	400 V	2.42 in	1.75 "	5 in	61.5 mm	127 mm	44.5 mm	1	ITE (Commercial)	200 V	Open Frame	28 V	-20 °C	95 °C	Chassis Mount	CE cURus	1.8 A
Cosel USA, Inc. SNDHS50B03	33 W	400 V	2.42 in	1.75 "	5 in	61.5 mm	127 mm	44.5 mm	1	ITE (Commercial)	200 V	Open Frame	3.3 V	-20 °C	95 °C	Chassis Mount	CE cURus	10 A	76 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame DC DC Converter 1 Output 28V 1.8A 400V Input
