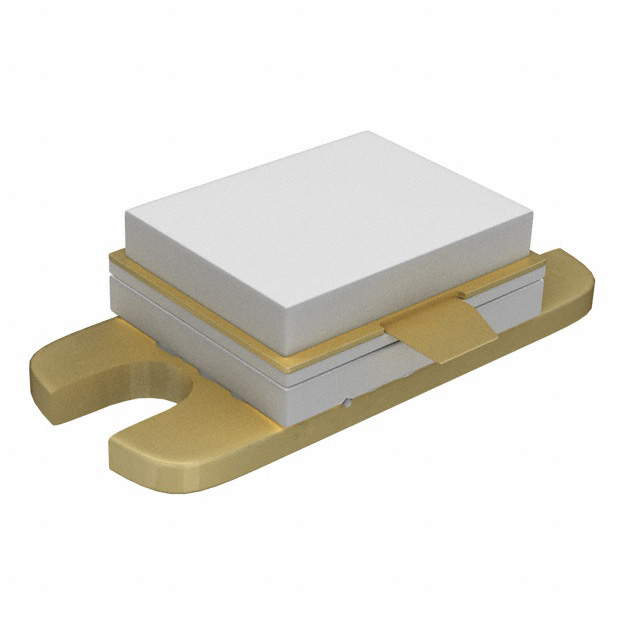

MX0912B251Y,114

Obsolete

Ampleon USA Inc.

RF TRANS NPN 20V 1.215GHZ CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF TRANS NPN 20V 1.215GHZ CDFM2

Technical Specifications

Parameters and characteristics for this part

Specification	MX0912B251Y,114

Current - Collector (Ic) (Max) [Max]	15 A
Frequency - Transition	1.215 GHz
Gain	7.4 dB
Mounting Type	Chassis Mount
Operating Temperature	200 °C
Package / Case	SOT-439A
Power - Max [Max]	690 W
Supplier Device Package	CDFM2
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	20 V

Part	Transistor Type	Mounting Type	Supplier Device Package	Power - Max [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Operating Temperature	Gain
Ampleon USA Inc. MX0912B251Y,114	NPN	Chassis Mount	CDFM2	690 W	SOT-439A	20 V	15 A	1.215 GHz	200 °C	7.4 dB
Ampleon USA Inc. MX0912B351Y,114	NPN	Chassis Mount	CDFM2	960 W	SOT-439A	20 V	21 A	1.215 GHz	200 °C	7.6 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 20V 15A 1.215GHz 690W Chassis Mount CDFM2
