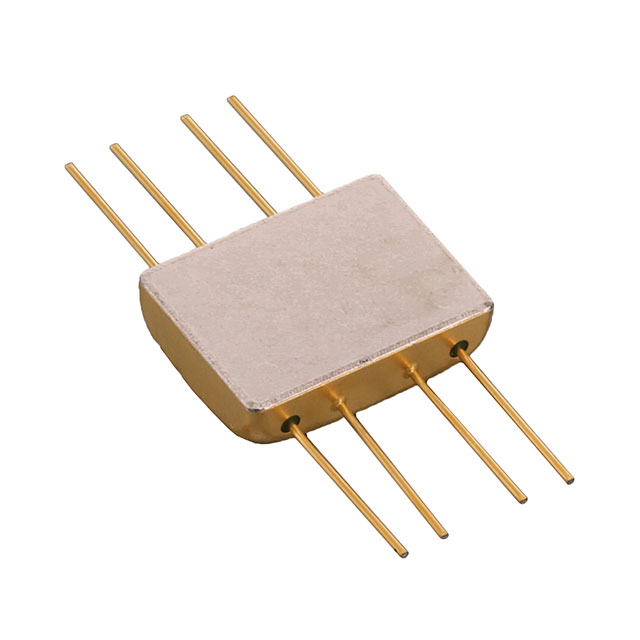

JH-141-PIN
ActiveMACOM Technology Solutions
HYBRID,QUADRATURE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JH-141-PIN
ActiveMACOM Technology Solutions
HYBRID,QUADRATURE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JH-141-PIN |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 2 GHz |
| Frequency [Min] | 1 GHz |
| Insertion Loss | 0.3 dB |
| Isolation | 18 dB |
| Package / Case | FP-2 |
| Power - Max [Max] | 25 W |
| Supplier Device Package | FP-2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 468.36 | |
Description
General part information
JH-141 Series
RF Directional Coupler General Purpose 1GHz ~ 2GHz 25W FP-2
