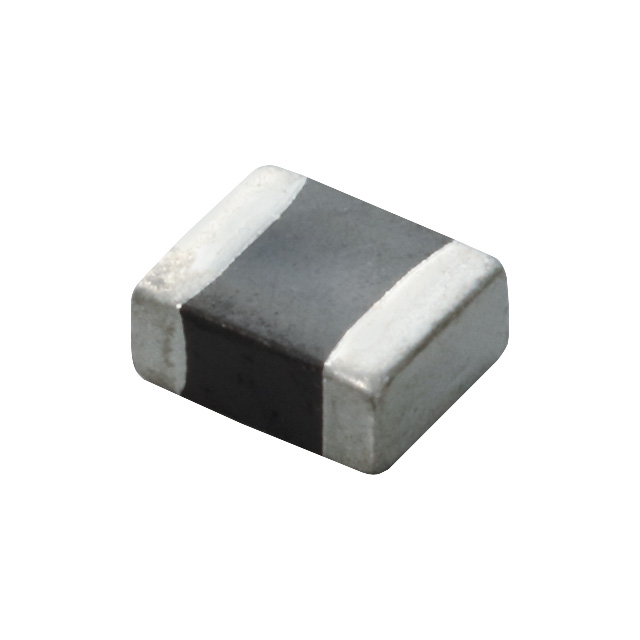

LQM2MPZ2R2MG0L
ActiveMurata Power Solutions Inc.
FIXED IND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LQM2MPZ2R2MG0L
ActiveMurata Power Solutions Inc.
FIXED IND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LQM2MPZ2R2MG0L |
|---|---|
| Current Rating (Amps) | 1.2 A |
| DC Resistance (DCR) [Max] | 138 mOhm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0806 (2016 Metric) |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 0806 |
| Tolerance | 20 % |
| Type | Multilayer |
