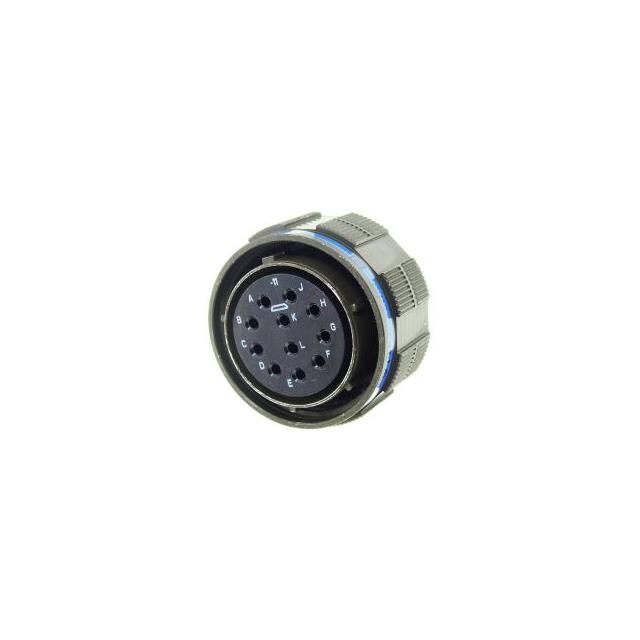

D38999/24FJ8PN

Active

Conesys

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24FJ8PN

Active

Conesys

CONN RCPT MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24FJ8PN

Applications	Aerospace, Military, Marine, Aviation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	8
Operating Temperature [Max]	200 °C, 125 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy, Aluminum
Shell Size - Insert	25-8
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

D38999/24FJ Series

Part	Orientation	Shell Size, MIL	Qualification	Mounting Feature	Housing Color	Connector Type	Shell Size - Insert	Ingress Protection	Contact Shape	Shielding	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Note	Contact Size	Contact Type	Type	Shell Material	Grade	Number of Positions	Contact Size	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Material Flammability Rating	Applications	Voltage Rating	Color	Contact Finish - Mating	Contact Material	Insert Material	Termination	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Conesys D38999/24FJ8AN	N	J	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	Silver	Receptacle Housing	25-8	Environment Resistant	Circular	Shielded	Electroless Nickel	-65 ░C	200 °C	Contacts Not Included	8 Twinax	Crimp	For Male Pins	Aluminum	Military	8
Conesys D38999/24FJ43BA	A	J	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	Silver	Receptacle Housing		Environment Resistant	Circular	Shielded	Electroless Nickel	-65 ░C	200 °C	Contacts Not Included		Crimp	For Female Sockets	Aluminum	Military	43	20 23	16 20	25	43
Conesys D38999/24FJ37PA-LC	A	J	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut	Silver	Receptacle Housing		Environment Resistant	Circular	Shielded	Electroless Nickel	-65 ░C	200 °C	Contacts Not Included		Crimp	For Male Pins	Aluminum	Military	37		16	25	37
Conesys D38999/24FJ8PN	N	J	MIL-DTL-38999 Series III	Bulkhead - Front Side Nut		Male Pins Receptacle	25-8	Environment Resistant Waterproof		Shielded	Electroless Nickel	-65 ░C	125 °C 200 °C					Aluminum Aluminum Alloy	Military	8					UL94 V-0	Aerospace Aviation Marine Military	500 VAC	Silver	Gold	Copper Alloy	Thermoplastic	Crimp	Metal	1.27 µm	50 µin
Conesys D38999/24FJ61SN	N			Bulkhead - Front Side Nut		Receptacle Female Sockets		Environment Resistant			Electroless Nickel	-65 ░C	200 °C					Aluminum Alloy		61			25	61					Gold			Crimp	Metal	1.27 µm	50 µin
Conesys D38999/24FJ4PA	A			Bulkhead - Front Side Nut		Male Pins Receptacle		Environment Resistant			Electroless Nickel	-65 ░C	200 °C					Aluminum Alloy		56			25	4					Gold			Crimp	Metal	1.27 µm	50 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 689.58
		10	$ 560.28
		25	$ 471.81
		50	$ 407.48
		100	$ 344.79

Description

General part information

D38999/24FJ Series

8 (Twinax) Position Circular Connector Receptacle, Male Pins Crimp
