H2102A01

Active

Harwin Inc.

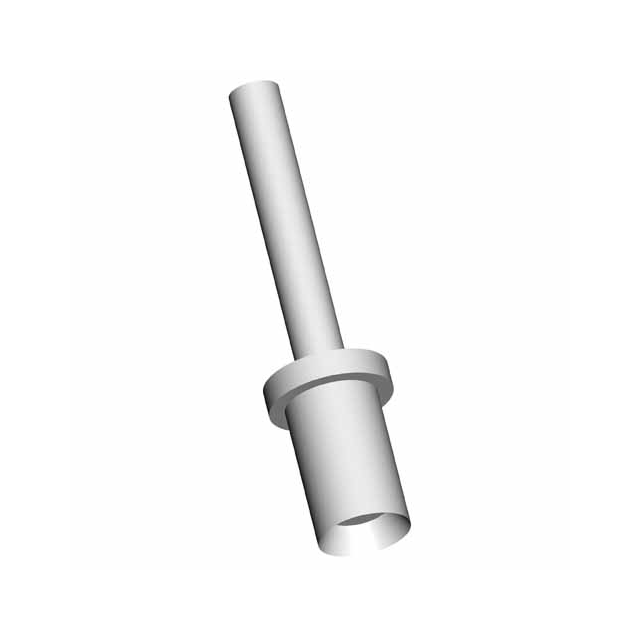

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2102A01

Board Thickness	0.094 in
Board Thickness	2.39 mm
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Above Flange [x]	6.02 mm
Length - Above Flange [x]	0.237 in
Length - Below Flange [x]	2.92 mm
Length - Below Flange [x]	0.115 in
Length - Overall	9.45 mm
Length - Overall	0.372 in
Mounting Hole Diameter [Max]	0.074 in
Mounting Hole Diameter [Max]	1.87 mm
Mounting Hole Diameter [Min]	0.07 in
Mounting Hole Diameter [Min]	1.78 mm
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.038 in
Pin Size - Above Flange [diameter]	0.97 mm
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Mounting Type	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Type	Insulation	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Min]	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Max]	Board Thickness	Board Thickness	Length - Below Flange [x]	Length - Below Flange [x]	Terminal Style	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Contact Material	Termination	Length - Overall [x]	Length - Overall [x]	Length - Above Flange [x]	Length - Above Flange [x]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Overall	Length - Overall
Harwin Inc. H2102B01	Through Hole	Tin	2.39 mm	0.094 in	PC Pin	Non-Insulated	0.07 in	1.78 mm	0.074 in	1.87 mm	0.094 in	2.39 mm	9.26 mm	0.365 in	Single End	0.038 in	0.97 mm	Brass	Swage	0.385 in	9.78 mm
Harwin Inc. H2102A01	Through Hole	Tin	2.39 mm	0.094 in	PC Pin	Non-Insulated	0.07 in	1.78 mm	0.074 in	1.87 mm	0.094 in	2.39 mm	2.92 mm	0.115 in	Single End			Brass	Swage			6.02 mm	0.237 in	0.038 in	0.97 mm	9.45 mm	0.372 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.14
Newark	Each	1000	$ 0.19

General part information

PC Pin Terminal Connector Through Hole Tin 0.038" (0.97mm) Dia
