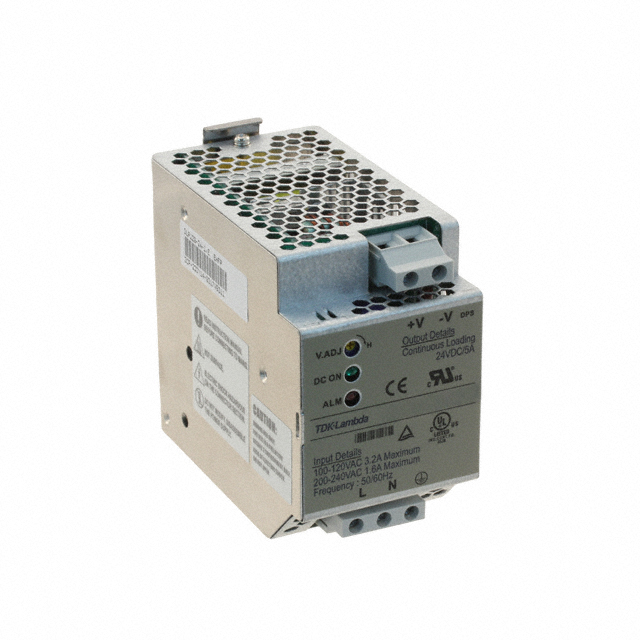

DLP75-24-1/E
ObsoleteTDK-LAMBDA
AC/DC DIN RAIL SUPPLY 24V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DLP75-24-1/E |
|---|---|
| AC Voltage - Input [Max] | 265 VAC, 132 VAC |
| AC Voltage - Input [Min] | 85 VAC, 170 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Efficiency | 83 % |
| Features | Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 75 W |
| Size / Dimension [x] | 110 mm |
| Size / Dimension [x] | 4.33 in |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [z] | 97 mm |
| Size / Dimension [z] | 3.81 " |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 72.33 | |
| 10 | $ 71.16 | |||
| 25 | $ 66.99 | |||
| 50 | $ 64.68 | |||
Description
General part information
DLP75 Series
AC/DC DIN RAIL SUPPLY 24V 75W
