LTM8050IY

Active

Analog Devices

58V, 2A STEP-DOWN ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R598 Reliability Data

LTM8050IY

Active

Analog Devices

58V, 2A STEP-DOWN ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

DocumentsDatasheet R598 Reliability Data

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM8050IY

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Features	OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

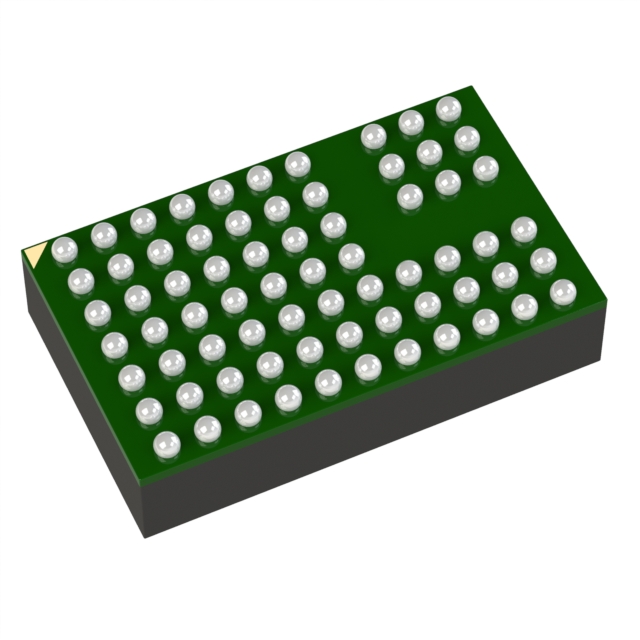

Package / Case	70-BBGA Module
Supplier Device Package	70-BGA (15x9)
Type	Non-Isolated PoL Module
Voltage - Input (Min) [Min]	3.6 V
Voltage - Output 1 [Max]	24 V
Voltage - Output 1 [Min]	0.8 V

LTM8050 Series

58V, 2A Step-Down μModule (Power Module) Regulator

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package	Mounting Type	Current - Output (Max) [Max]	Type	Features	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]
Analog Devices LTM8050IY	0.8 V	24 V	70-BGA (15x9)	Surface Mount	2 A	Non-Isolated PoL Module	OTP	ITE (Commercial)	70-BBGA Module	125 °C	-40 °C	1	3.6 V
Analog Devices LTM8050MPY	0.8 V	24 V	70-BGA (15x9)	Surface Mount	2 A	Non-Isolated PoL Module	OTP	ITE (Commercial)	70-BBGA Module	125 °C	-55 °C	1	3.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 41.93
		5	$ 40.37
		10	$ 39.71
		25	$ 38.86
		50	$ 38.23
		170	$ 37.13

Description

General part information

LTM8050 Series

The LTM8050 is a 58VIN, 2A step down μModule®(power module) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 58V, the LTM8050 supports an output voltage range of 0.8V to 24V and a switching frequency range of 100kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.The LTM8050 is packaged in a 9mm × 15mm × 4.92mm ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8050 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsAutomotive Battery RegulationPower for Portable ProductsDistributed Supply RegulationIndustrial SuppliesWall Transformer Regulation
