ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; HAN® M; IP44,IP65,IP67

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; HAN® M; IP44,IP65,IP67

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size	Housing Color	Style	Connector Type	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Ingress Protection	Features
HARTING Technology Group 09370030102	Locking Clip (1) on Hood	PG13.5	1.339 in	24.2 mm	0.953 in	34 mm	0.953 in	24.2 mm	3 A	Black	Top Entry	Hood
HARTING Technology Group 09370030306	Locking Clip (1) on Base Bottom		0.984 in	40 mm	1.575 in	25 mm	1.102 in	28 mm	3 A	Black	Bottom Entry	Base - Panel Mount	Powder Coated	125 °C	-40 °C	Zinc Die Cast	IP44	Cover
HARTING Technology Group 09370030801	Locking Clip (1) on Base Bottom		1.122 in	40 mm	1.575 in	28.5 mm	1.594 in	40.5 mm	3 A	Black	Side Entry	Base - Panel Mount 90°	Epoxy Powder Paint	125 °C	-40 °C	Zinc Die Cast	IP44

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

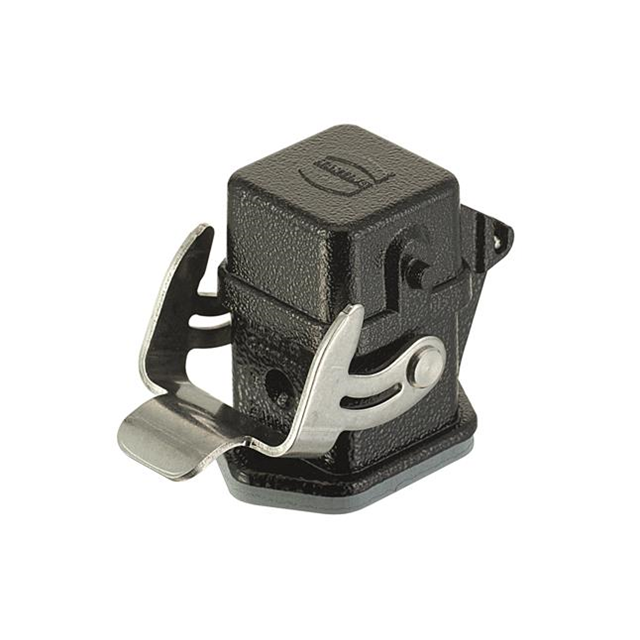

Base - Panel Mount Connector Bottom Entry 3A IP44
