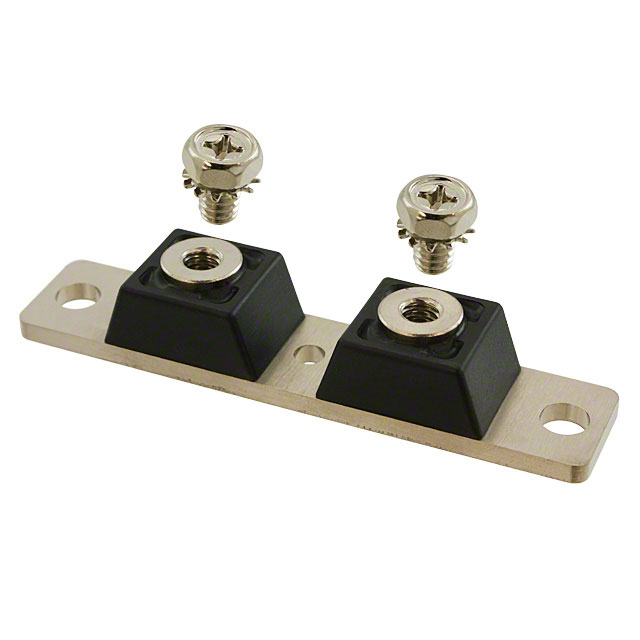

MBR60060CTR

Active

GeneSiC Semiconductor

DIODE MOD SCHOTT 60V 300A 2TOWER

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE MOD SCHOTT 60V 300A 2TOWER

Technical Specifications

Parameters and characteristics for this part

Specification	MBR60060CTR

Current - Average Rectified (Io) (per Diode)	300 A
Current - Reverse Leakage @ Vr	1 mA
Diode Configuration	1 Pair Common Anode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	Twin Tower
Speed	200 mA, 500 ns
Supplier Device Package	Twin Tower
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	800 mV

Part	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Supplier Device Package
GeneSiC Semiconductor MBR60060CTR	1 Pair Common Anode	150 °C	-55 °C	300 A	1 mA	Twin Tower	800 mV	200 mA 500 ns	60 V	Chassis Mount	Schottky	Twin Tower

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 107.87

General part information

Diode Array 1 Pair Common Anode 60 V 300A Chassis Mount Twin Tower
