Technical Specifications
Parameters and characteristics for this part
| Specification | AP2331FJ-7 |
|---|---|
| Current - Output | 200 mA |
| Function | Current Switch |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

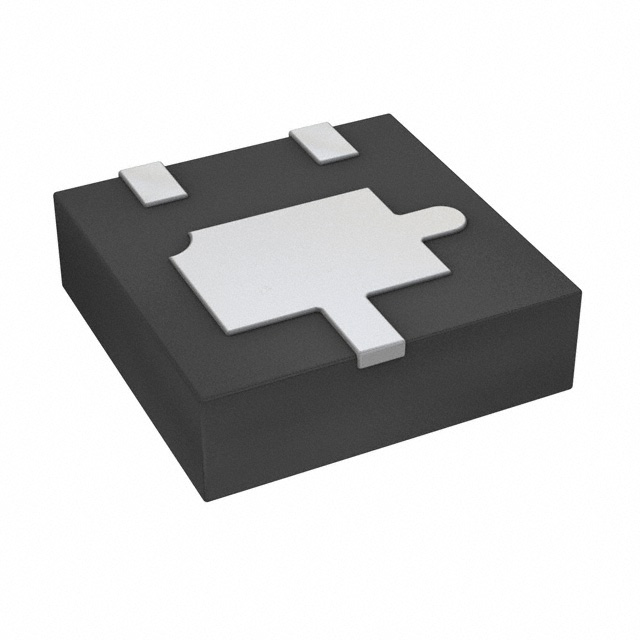

| Package / Case | 3-UDFN Exposed Pad |
| Sensing Method | High-Side |
| Supplier Device Package | U-DFN2020-3 |
| Voltage - Input [Max] | 5.2 V |
| Voltage - Input [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AP2331TD Series
The AP2331TD is a single channel current-limited integrated high-side power switcher optimized for hot-swap applications. The devices have fast short-circuit response time for improved overall system robustness and provide a complete protection solution for application subject to heavy capacitive loads and the prospect of short circuit. It offers reverse-current blocking, over-current, over-temperature and short-circuit protection, as well as controlled rise time and under-voltage lockout functionality.
