SY100EL51ZI-TR

Unknown

Microchip Technology

IC FF D-TYPE SINGLE 1BIT 8-SOIC

Search across all available documentation for this part.

Unknown

Microchip Technology

IC FF D-TYPE SINGLE 1BIT 8-SOIC

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Elements	Trigger Type	Package / Case	Package / Case [y]	Package / Case [x]	Type	Clock Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Quiescent (Iq)	Function	Output Type	Mounting Type	Supplier Device Package	Number of Bits per Element
Microchip Technology SY100EL51ZI	85 °C	-40 °C	1	Negative Positive	8-SOIC	3.9 mm	0.154 in	D-Type	2.8 GHz	-5.5 V	-4.2 V	29 mA	Reset	Complementary	Surface Mount	8-SOIC	1
Microchip Technology SY100EL51ZI-TR	85 °C	-40 °C	1	Negative Positive	8-SOIC	3.9 mm	0.154 in	D-Type	2.8 GHz	-5.5 V	-4.2 V	29 mA	Reset	Complementary	Surface Mount	8-SOIC	1
Microchip Technology SY100EL51ZG	85 °C	-40 °C	1	Negative Positive	8-SOIC	3.9 mm	0.154 in	D-Type	2.8 GHz	-5.5 V	-4.2 V	29 mA	Reset	Complementary	Surface Mount	8-SOIC	1
Microchip Technology SY100EL51ZC-TR	70 °C	0 °C	1	Negative Positive	8-SOIC	3.9 mm	0.154 in	D-Type	2.8 GHz	-5.5 V	-4.2 V	29 mA	Reset	Complementary	Surface Mount	8-SOIC	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

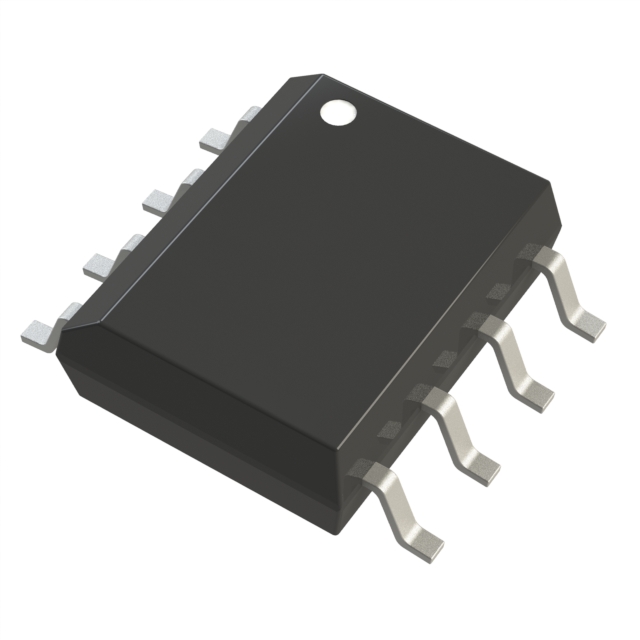

Flip Flop 1 Element D-Type 1 Bit Positive, Negative 8-SOIC (0.154", 3.90mm Width)

Technical documentation and resources
